    Terminal Block GE oven

    Asked Nov 15, 2018, 06:52 AM 4 Answers
    Terminal block replacement for GE stove.
    If the clips fit into the terminal block where
    Does the wire go. Only one wire with two clips
    On either end.
    Or do you just splice the wires to the existing wires.
    Bad burner

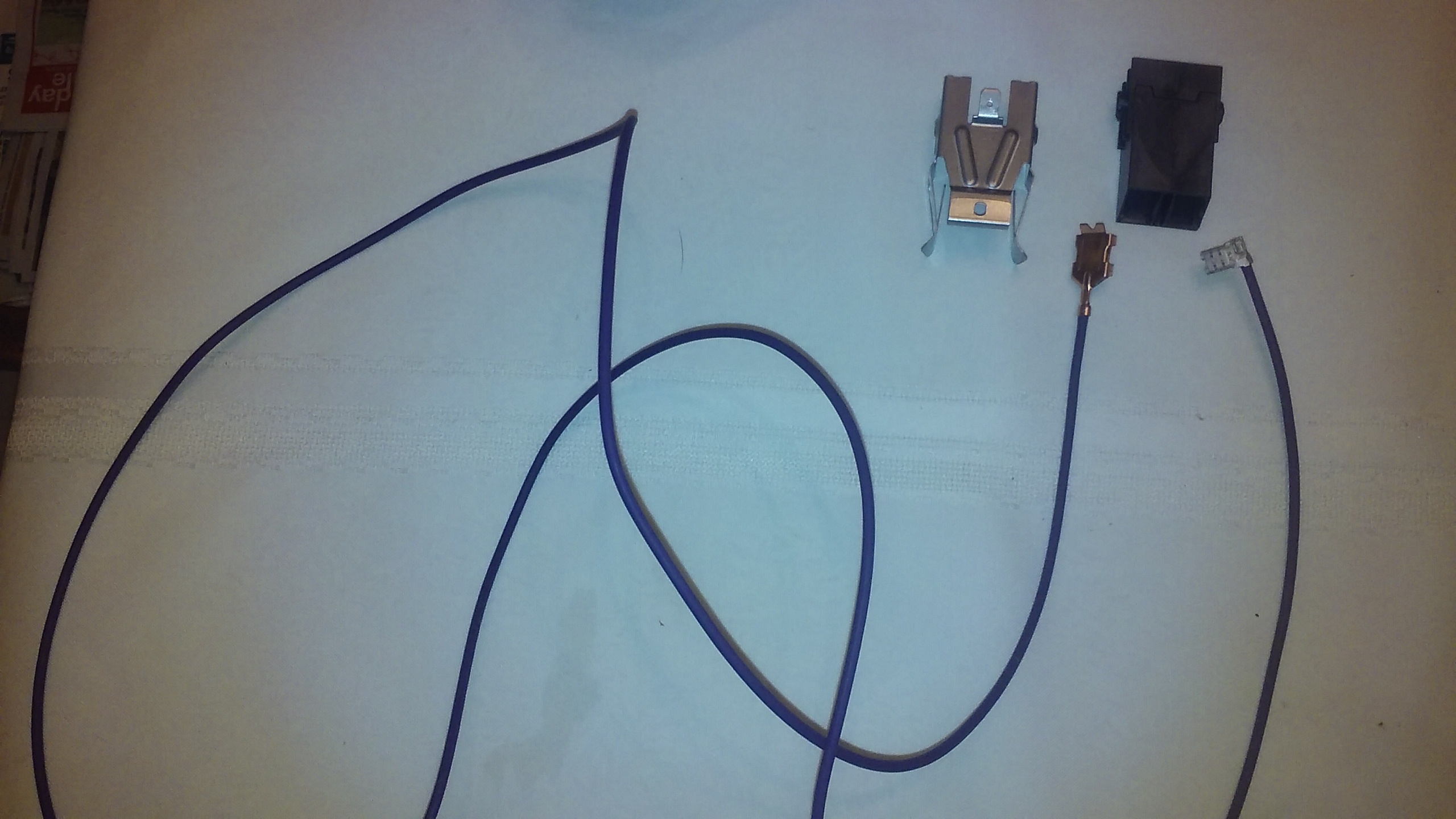

    Attached Images Attached Images
    Search this Question
    Share |
    4 Answers
    talaniman's Avatar
    talaniman Posts: 53,763, Reputation: 10849
    Expert

    #2

    Nov 15, 2018, 07:18 AM
    https://www.bing.com/videos/search?q...=1&FORM=VIREHT

    Looks like it simply plugs into the new block pastor. I cannot see from your picture the wire you talk about so if you could explain where it came from that would help. Was the wire broken from one of the clips?

    Review your wiring as there are only TWO that go to the block.
    Helpful
    pastor1189's Avatar
    pastor1189 Posts: 1,533, Reputation: 3
    Ultra Member

    #3

    Nov 15, 2018, 07:49 AM
    Funny thing the burner started working again . I'll keep this new part for a while.
    It is just one single wire with two different clips on each end. If you insert
    Them into the block what about the other end of the wire. You would still
    Have to cut it, unless you splice the cut wire to the existing wires.
    Helpful
    ma0641's Avatar
    ma0641 Posts: 15,616, Reputation: 1010
    Uber Member

    #4

    Nov 15, 2018, 09:59 AM
    Look on the bottom of the block, between the wires shown. It appears there are 2 spaces where the wires push fit.
    Helpful
    pastor1189's Avatar
    pastor1189 Posts: 1,533, Reputation: 3
    Ultra Member

    #5

    Nov 15, 2018, 11:00 AM
    Looks like it. If that is true. Do you have to splice the other end to the existing wires
    Stripping off the insulation ?
    Helpful
