    Ice Maker
    Had replace the Kenmore solenoid ice maker in May, and it made ice. Recently
    it stopped again. Put another solenoid in, but it seems it doesn't come on.
    To test for current do I unplug the harness and put the probe on the solenoid contacts?
    But what if the wire plug coming into the solenoid has no current?

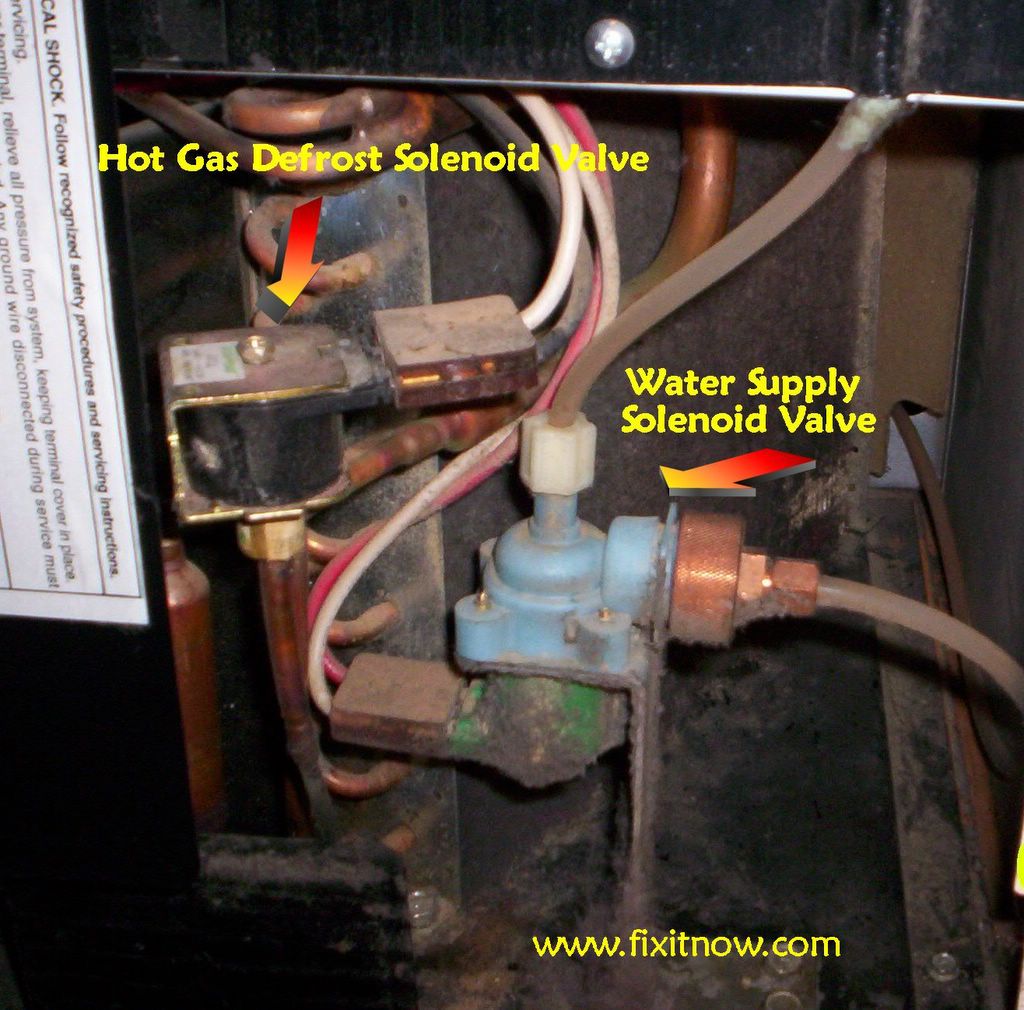

    See picture




    Attach the two multimeter probes to each solenoid contact. Read the multimeter's display. A properly working solenoid will reflect a 200 to 500 ohm reading. Replace the solenoid if it produces no reading or has a large displayed value.
    Attached Images

    hkstroud's Avatar
    hkstroud Posts: 11,929, Reputation: 899
    Home Improvement & Construction Expert

    #2

    Oct 5, 2014, 07:03 AM
    But what if the wire plug coming into the solenoid has no current?
    The wires to water solenoid will only have voltage when the ice maker is calling for water.
    I would first make sure the ice maker has not been turned off. I would also insure that it had not been electrically disconnected. I would then remove the incoming water line and make sure that I had water to the solenoid. If I had water to the solenoid I would remove the out going water line and see if I had water leaving the solenoid. If not, I would find an old extension cord. Cut off the female end and put a couple female connectors on it. Connect the extension cord to the solenoid. Plug the extension cord in. If you have water out, the solenoid is OK and problem is in ice maker. No water out means solenoid is defective.
    pastor1189's Avatar
    pastor1189 Posts: 1,538, Reputation: 3
    Ultra Member

    #3

    Oct 5, 2014, 11:43 AM
    Thanks the gate on the ice maker itself is working
    But when it comes down, the water valve doesn't kick in.
    Ice maker cost $49.00 Sears want $75.00 just to visit
    drtom4444's Avatar
    drtom4444 Posts: 3,282, Reputation: 145
    Ultra Member

    #4

    Oct 6, 2014, 09:48 AM
    Name: Microswitch.jpg Views: 227 Size: 20.8 KBThen all you may have wrong with it is either the microswitch that controls the water valve or you may simply need to adjust the switch. Pop off the end of the ice maker and you will see an adjustment screw with "+" and "-" on the steel plate under it. First, take a small screw driver and press the button on the microswitch and if it is good the water solenoid will be activated. Here are two manuals to help you out so you can learn to use a meter, too: https://dl.dropboxusercontent.com/u/...0Dispenser.pdf
    https://dl.dropboxusercontent.com/u/...e%20Manual.pdf
    https://dl.dropboxusercontent.com/u/...Electronic.pdf
    https://dl.dropboxusercontent.com/u/...e%20Manual.pdf
    Here is what it looks like above. Some ice makers are made with a different type switch made onto a circuit board.
    pastor1189's Avatar
    pastor1189 Posts: 1,538, Reputation: 3
    Ultra Member

    #5

    Oct 6, 2014, 10:19 AM
    Only see the adjustment screw. No button underneath it.

    Attachment 46683
    drtom4444's Avatar
    drtom4444 Posts: 3,282, Reputation: 145
    Ultra Member

    #6

    Oct 6, 2014, 10:39 AM
    Look around for a switch. The screw moves something that controls the length of time the solenoid stays open. One wire leaving the switch leads to the plug that plugs into the receptacle on the freezer wall. Trace each wire and two are power-one hot and one neutral which are black and white, one green ground wire, and a brown wire leading to the water valve. Trace the brown wire and it will lead you to the switch.
    pastor1189's Avatar
    pastor1189 Posts: 1,538, Reputation: 3
    Ultra Member

    #7

    Oct 6, 2014, 11:48 AM
    Okay I will tried it
    pastor1189's Avatar
    pastor1189 Posts: 1,538, Reputation: 3
    Ultra Member

    #8

    Oct 13, 2014, 07:00 AM
    Purchased a new ice maker everything brand new. Still not working
    Inlet valve shows 300 ohms . Do not hear the valve coming on. Will check the water lines next..
