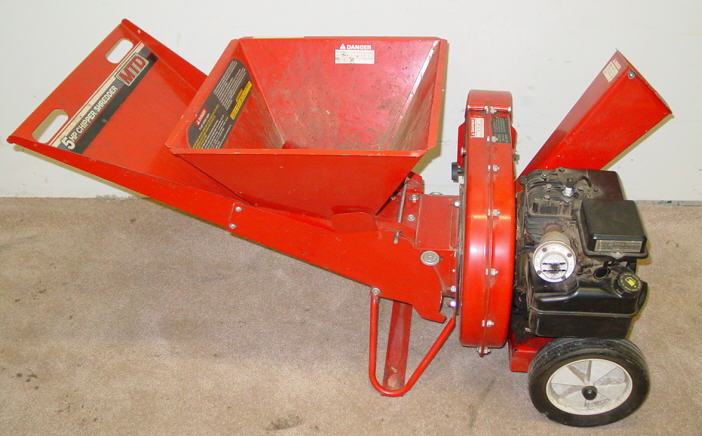

MTD 5.5HP Chipper/Shredder

This is great. Two other questions. Where do I dribble in the new gas, into the bowl? Is there a drain for the tank, or do I have to siphon out from the top?

Scott, I have read all the answers, your post and responses, here's what a non trained mechanice like me would do -- TRY NOT TO TAKE CARB APART UNTIL YOU HAVE TRIED ALL ELSE ! I have done it before, not that hard but why go to the trouble if you change the plug, start with fresh gas in the tank and change the air filter or at least make sure it's not loaded with dust, debris.

Take the air filter off, and put a little shot of gas down the carbs throat (the hole there)


If you didn't need it right now..... I'd tell yeah to go ahead yourself and learn how to do it (with help from members here) but you need it now..... So go with bondmans advice.... Start with the simple stuff.... But usually if its sit for months.... Carb is gummed up (or water/trash is in it) and this is a tecumseh..... They can be picky about they're carbs.

Well, weather and time prevented me from working on it until this morning. The good news is that I got the thing to catch. The bad news is it died out after about a minute. I tried it several times. Each time putting a couple of ounces into the hole behind the air filter (whihc looks clean). Each time it caught after a 3-4 pulls, then ran for about a minute and died. So I guess the carb is gummed up preventing fuel from flowing from the tank.

I've attached another picture just to make sure. Is the carb, what I marked in yellow or the thing behind that, marked in red? I think its the yellow thing, but want to make sure. There is a bolt at the botton of the pipe coming from the tank. Is that where I disconnect it? Anywhere else? Any more tips?

I'm a fairly handy guy, but I wonder if I might not be better taking it into a shop. Any ideas how much it might cost. I'd been willing to go $50-$100 to make sure its done quickly and right. But the unit only cost $400, so I'm not sure I want to sink that much more into it.

Scott<>

Attached Images



You may be in luck, this is a fairly simple carb, the easiest way to try on your own without causing more problems (it doesn't start now can't be worse) The silver "cup" is the float chamber. The bolt holding the chamber on is the main nozzle.

Remove the bolt and chamber, clean the bolt completely all the small holes. Does fuel flow freely when the float is in the lowered position? If the cup was on it would alllow the fuel to hold the float in the up or closed position until more fuel is needed in the carb. If fuel does not flow you have a blockage before the carb.

If fuel flows, get a can of carb cleaner and spray liberaly into the threaded area where the bolt held the cup on this is the pilot jet and can also plug up
.
This should get you started without a complete removal of the carb. If it does start and run great, if not try using a partial choke method until it pulls fuel on its own. (covering the intake off and on keeping it running this way until it runs on its own or just won't).

If none of this works you can expect an hour minimum at a shop $40-$65 and parts no more than $25.00.

I just want to make sure here cause I'm not sure I see the bolt holding the float cup on. I see the bolt holind the asembly onto the down pipe. I see a screw at about 11 o'clock in reference to the red button. But I don't see anything else.

I'm also not clear on what you mean by a partial choke. Are you talking about running with the air filter cover off?

I'll go out tmmw morning and get carb spray. So I'll be able to try this again tmmw morning.

Scott<>

Below the red rubber primer button is the sediment bowl or "cup" it is silver and has a small lip all the way around it. This is held on by one bolt recessed in the middle coming up from the bottom 7/16 Head maybe 1/2. By removing this bolt you can drop the "cup" try not to disrupt the rubber seal for the "cup". You have a situation were you are not getting proper air/fuel mixture. We ultimately would like to increase the amount of fuel to air mixture by cleaning things, choking or reducing the amount of air can accomplish the same thing (although with much less HP)

You choke by restricting the air coming into the carburetor with a rag or something that can be easily removed. There will be vacum at the carb while it is running so be prepared to continue the cycle until it runs on its own.

Hope this helps

Thanks again to everyone for their help here. Just wanted to give you an update.

After everything I tried, I finally took it to a repair shop. They replaced the carb, spark plug and did a tuneup of the OHV. I got it back Saturday (took them over almost 2 weeks to fix it). But I must say its never run smoother. It use to take a couple of pulls and a lot of pumping of the choke. Now, one press of the choke and one pull and she starts up. I used it Sat for about an hour, then when to use it again yesterday. Of course something jammed in the blades and I had a heck of time (finally had to remove the hopper) to clear it. But once I did she ran smoothly.

I have the feeling, though, its going to take me most of the winter (especially if it snows) to clean my yard out.

I have the exact same unit. My husband was trying to start it, he put gas down the carb, pulled the spark plug out and cleaned it, etc. And was pulling the string, and next thing you know, the string is stuck. He pulls, and it like jams and won't go any further. He thinks it's something stuck in the blades. I think it's some kind of safety feature where if something is seriously wrong with the unit, the pully will stop. I don't know if either of us is right, but this chopper is brand new (almost) and we would really like to get it running.

If anyone has either the owner's manual or any suggestions, I would really appreciate it.

Thanks!

Duchess

Hi Duchess. That actually happened to me the 2nd time I went to use it after I got it out of the shop. You are almost exactly right, but its not a safety feature its how the starter works. When you pull the cord it starts the motor turning which in turn, turns the blades. So if something is stuck in the blades, the motor can't turn and the cord won't move.

The first thing to do is use a long stick to see if you can turn the blades through the hopper (where you put leaves not branches). You may see or dislodge whatever is jammed in the blades. If that doesn't work, you will need to take off the hopper. There are 6 or 8 nuts holding the hopper on. Once you take it off you should be able to dislodge what's jamming the blades. If you can't find anything jamming on the hopper side, you may have to remove the chute (where you put branches) to get at the other side of the blades.
