MTD 13AN77KG011 steering shaft

Asked Aug 4, 2012, 07:43 AM — 3 Answers
I got the same model and problem. Model # 13AN77KG011

Were you able to get the shaft out? My 'Bearing, Flange, Hex 5/8' Part # 741-04124 appears to be a big Phillips head screw. Breaks left I assume. Tight. Going to have fun with that.

Also, please tell me a wheel-puller is not required to get a steering wheel off of a riding lawnmower.

Goal= replace shaft. Part #738-0919A

Search this Thread
Share |
3 Answers
crigby's Avatar
crigby Posts: 3,653, Reputation: 461
Outdoor Power Equipment Expert

#2

Aug 6, 2012, 01:40 PM


Hi,

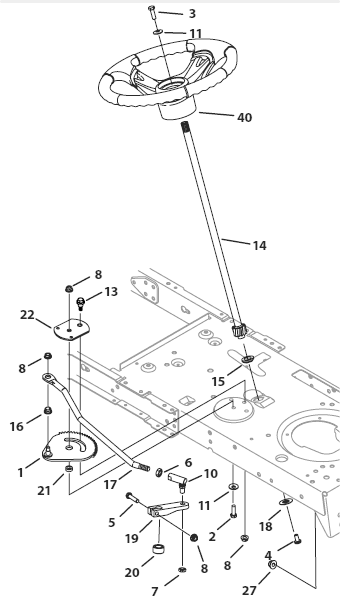

Firstly I broke your post free of a three year old thread. I will post a picture of your steering. The bearing #15 is indeed the number you say. The rest of the steering is #4 which is a 5/16-18 x3/4" bolt(1/2" wrench or socket) and #18 washer.
Peacce,
Clarke
Attached Images

Helpful
hook77's Avatar
hook77 Posts: 4, Reputation: 1
New Member

#3

Aug 6, 2012, 06:22 PM
I have the same picture and missed those parts under the frame for some reason. Thanks.

I removed 3 & 11 but that steering wheel is on there! My new shaft should be here tomorrow and we'll see how this goes. Thanks again.
Helpful
hook77's Avatar
hook77 Posts: 4, Reputation: 1
New Member

#4

Aug 8, 2012, 05:58 PM
Done. Thanks again.
Helpful
