john deere belt diagram 42" mower

Asked Apr 15, 2012, 06:00 PM — 1 Answer
borrowed sisters LA115 John Deere Lawn Tractor.
It has a 42 " deck.
I broke the belt and need a diagram so I can put a new one on without paying the hefty service call.
any help would be AWESOME !
Thank you
rowlandpchef@Hotmail.com
Cheryl

Search this Thread
Share |
1 Answer
crigby's Avatar
crigby Posts: 3,658, Reputation: 461
Outdoor Power Equipment Expert

#2

Apr 15, 2012, 06:06 PM


Hi,

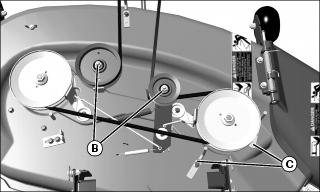

Please see below. Picture and directions!
Peace,
Clarke
Attached Images

Attached Images
File Type: pdf ladeck.pdf (897.4 KB, 895 views)
