    John Deere 160 belt diagram
    The belt driving the mower blades on our John Deere 160 (38" mower deck) has come off the pulleys. Please provide a diagram that shows how the belt is to be routed through the pulleys.

    Thank you, John
    ballengerb1's Avatar
    ballengerb1 Posts: 27,378, Reputation: 2280
    Home Repair & Remodeling Expert

    #2

    Jul 11, 2009, 07:54 AM

    Search starts here, good luck. john deere belt diagram - Google Image Search
    crigby's Avatar
    crigby Posts: 4,343, Reputation: 107
    Outdoor Power Equipment Expert

    #3

    Jul 12, 2009, 06:37 AM
    Hi,

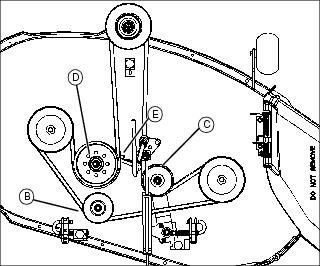

    Missed your post somehow. The LT160 will have the newer model 38C deck, so here:
    Peace,
    Clarke
    Attached Images

    Boom73e's Avatar
    Boom73e Posts: 2, Reputation: 1
    New Member

    #4

    Jun 8, 2012, 04:15 AM
    I have a question for you will the diagram for the 160 tractor be the same for a 46 inch deck? Thanks Dom
    crigby's Avatar
    crigby Posts: 4,343, Reputation: 107
    Outdoor Power Equipment Expert

    #5

    Jun 9, 2012, 12:48 PM
    Hi,
    No it won't! Is it an LT machine? Look at the link for OPEbyCrigby to find a plethora of belt diagrams.
    Peace,
    Clarke
