    roby9637's Avatar
    roby9637 Posts: 1, Reputation: 1
    New Member

    #1

    Aug 24, 2012, 03:01 PM
    How do I replace the drive belt on troy bilt riding mower Model B809H
    How do I remove the electric PTO clutch to access the drive belt pulley ?
    crigby's Avatar
    crigby Posts: 4,343, Reputation: 107
    Outdoor Power Equipment Expert

    #2

    Aug 26, 2012, 05:05 PM
    Hi,

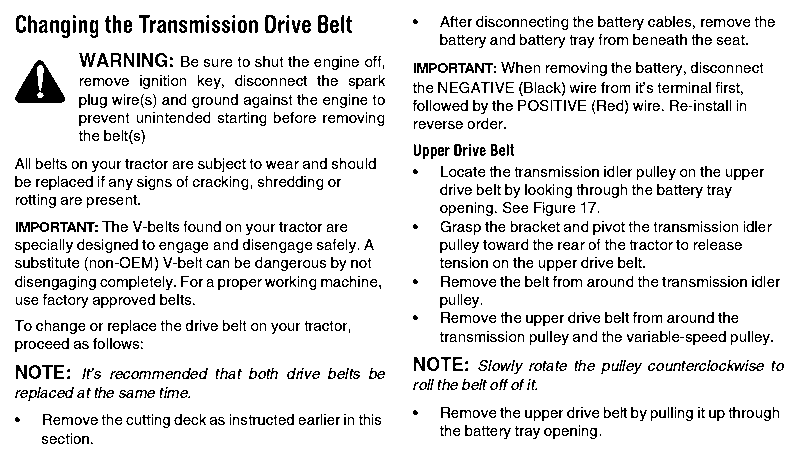

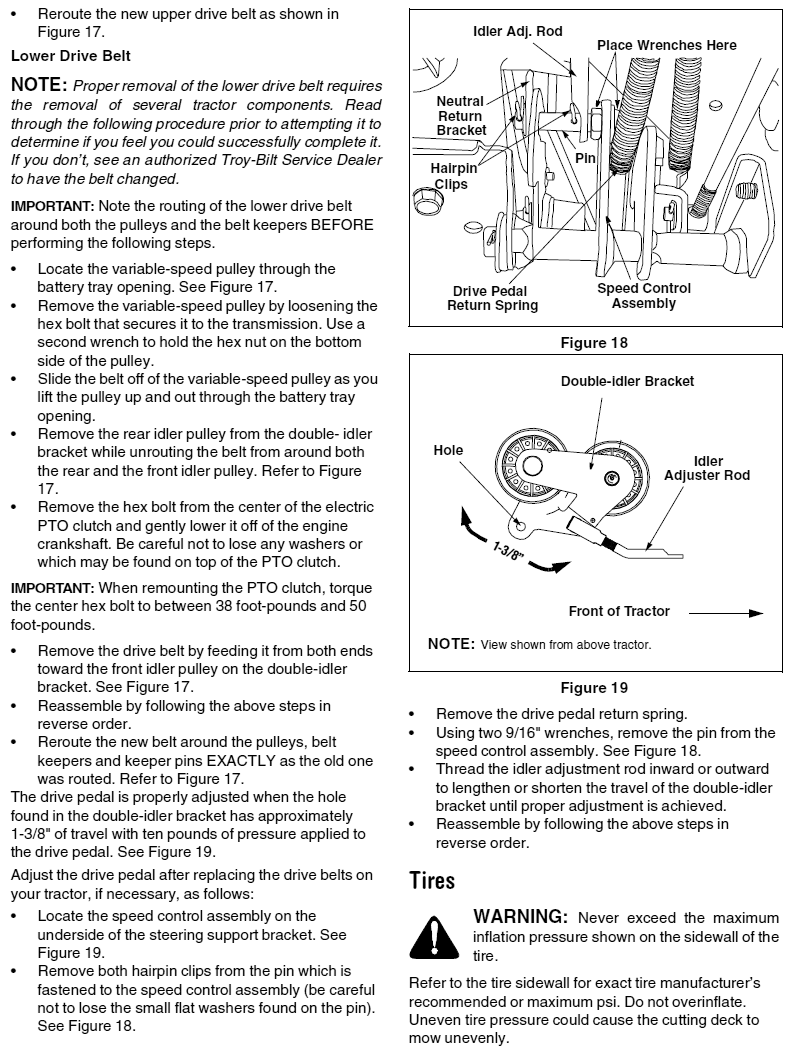

    The following are from the manual at:
    PDF Manual Web Archive
    Using 14AB809H063 as the model and 1 as the serial.
    Peace,
    Clarke
    Attached Images
