    Need a drive belt diagram for a troybilt super bronco
    Need a drive belt diagram for a troybilt super bronco?
    shindiawa's Avatar
    shindiawa Posts: 16, Reputation: 1
    New Member

    #2

    Feb 26, 2010, 10:32 AM

    Hey Mark if you went to
    Partstree.com you could look up your model and see anything you wanted to no about it.
    Shin.
    crigby's Avatar
    crigby Posts: 4,343, Reputation: 107
    Outdoor Power Equipment Expert

    #3

    Feb 26, 2010, 11:46 AM

    Hi,
    That is one place to look. Outdoor Distributors and OrderTree are a couple of others. With the model number you can go to MTD and download the manual.
    Peace,
    Clarke
    PS you could even take the link in my sig.
    63mark's Avatar
    63mark Posts: 2, Reputation: 1
    New Member

    #4

    Feb 28, 2010, 06:06 AM
    Thanks guys, problem is , I have no model or serial numbers. There are no stickers on the tractor. Only thing I know is the tractor is a 1999 or 2000. It has a kohler 20 hp twin and came with a 46" deck.
    crigby's Avatar
    crigby Posts: 4,343, Reputation: 107
    Outdoor Power Equipment Expert

    #5

    Feb 28, 2010, 06:53 AM

    Hi,

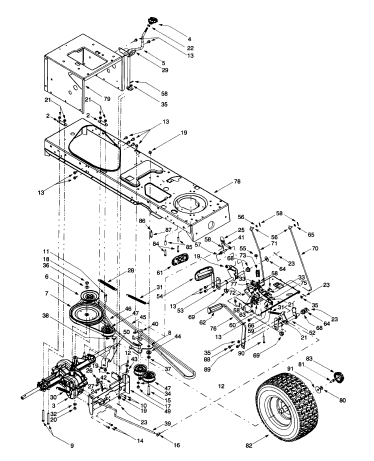

    I have done what I can. My guess is you have a 13BU604H063 or a 13BU609H063. They all seem to have the same drive.
    Peace,
    Clarke
    Attached Images
