Craftsman Snowblower Model# 536.886120

Try this site I didn't find the exact model number you specified but close. Maybe you mis typed it or can find another number to search for.
Site is OwnerIQ
Craftsman Snow Blower manuals, user manuals, owners manuals, how-to instructions and help.
Craftsman]LawnandGarden.ManualsOnline.com - We found it so you don't have to! Snow Blower manuals, user manuals, owners manuals, how-to instructions and help

Thanks, tried there but need the manual for belt numbers and installation.

Hi,
Did the manual at Sears not have a parts breakdown in the back? The belts are 579932MA and 581264MA. That was looked up at the sister site searpartsdirect.com and had not no picture.
To tell you what you have; it is a Noma(Dynamark) snowthrower made for Sears. The company was bought by Murray which was was taken over by Briggs & Stratton because of outstanding debt. All factories were closed and the manufacturing responsiblities were transferred to AYP(who has made most Craftsman equipment for a long time.)

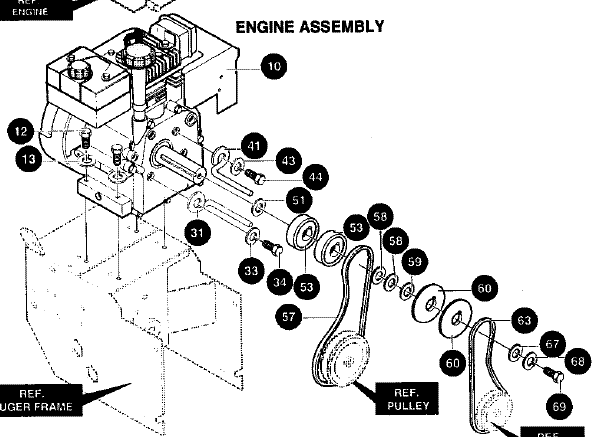

There is another site that has a similar model number manual on it. LawnandGarden.ManualsOnline.com - We found it so you don't have to! where I found a picture. I will try to attach. Understand that most mechanics have little more to go on than this. Where the belts curve inward means that a pulley is touching the backside(outside) of the belt to engage.

Attached Images



Hi! HAPPY HOLIDAYS TO YOU AND YOURS!
Thanks, but I found a breakdown picture, but no directions or instructions on how to go about changing the belts. As you know you seem to have a problem some where along the line.

I have a wiring problme with my craftsman 536-886120
Mice were living in the negine area and now it won't start

Here is a link to the manual that was first requested:

http://www.managemyhome.com/mmh/lis_...M/L0909323.pdf

Is their a craftman snow blower parts manual model # 536.886120 I can get a coppy ? I need to order parts thanks

you can go on sear parts webb site and find any parts you need.
Luck
