    Craftsman 48" mower deck belt
    I purchased a Craftsman 48" 24 hp mower from a scratch and dent store. There are no model #s and I did not receive a manuel. I need a diagram to replace the deck belt that drives the blades.
    crigby's Avatar
    crigby Posts: 4,343, Reputation: 107
    Outdoor Power Equipment Expert

    #2

    Jul 18, 2009, 10:51 AM
    Hi,

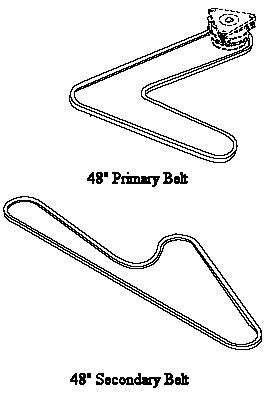

    Two belts?
    Try:
    Peace,
    Clarke
    Attached Images

    tooleman's Avatar
    tooleman Posts: 1, Reputation: 1
    New Member

    #3

    May 14, 2012, 08:42 PM
    I also need the belt size #'s
