Belt Diagram for John Deere 165 Hydro riding mower

Asked Jun 23, 2009, 09:49 AM — 3 Answers
I need a belt diagram for the primary and secondary belts of a John Deere 165 Hydro riding lawn mower with a 38 inch deck and electro magnetic clutch.

Search this Thread
Share |
3 Answers
crigby's Avatar
crigby Posts: 3,659, Reputation: 461
Outdoor Power Equipment Expert

#2

Jun 23, 2009, 03:26 PM


Hi,
I guess you thought it would be easy, but there were two deck used. Slightly different but the trick is to look at the spindle housings on the deck. 3 bolts (cast iron) or 4 bolts (aluminum) Please advise I will attempt to find. It may be on Google at the link that ballengerb1 gives, though some of the pictures are poorly labelled.
Peace,
Clarke
Helpful
j_mm51's Avatar
j_mm51 Posts: 1, Reputation: 1
New Member

#3

Yesterday, 01:09 PM
4 bolt aluminum
Helpful
crigby's Avatar
crigby Posts: 3,659, Reputation: 461
Outdoor Power Equipment Expert

#4

Yesterday, 01:14 PM


Hi,
They both basically the same, but have at it.
Peace,
Clarke
This is actually an LX deck, but it is the same.

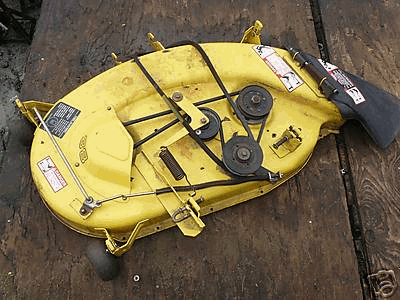

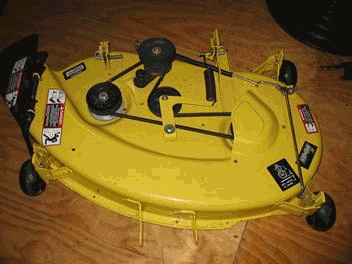

Attached Images

Helpful
