    Connections for Midwest Electric 60A GFCI Spa Disconnect Panel

    Asked Feb 15, 2011, 09:34 AM 3 Answers

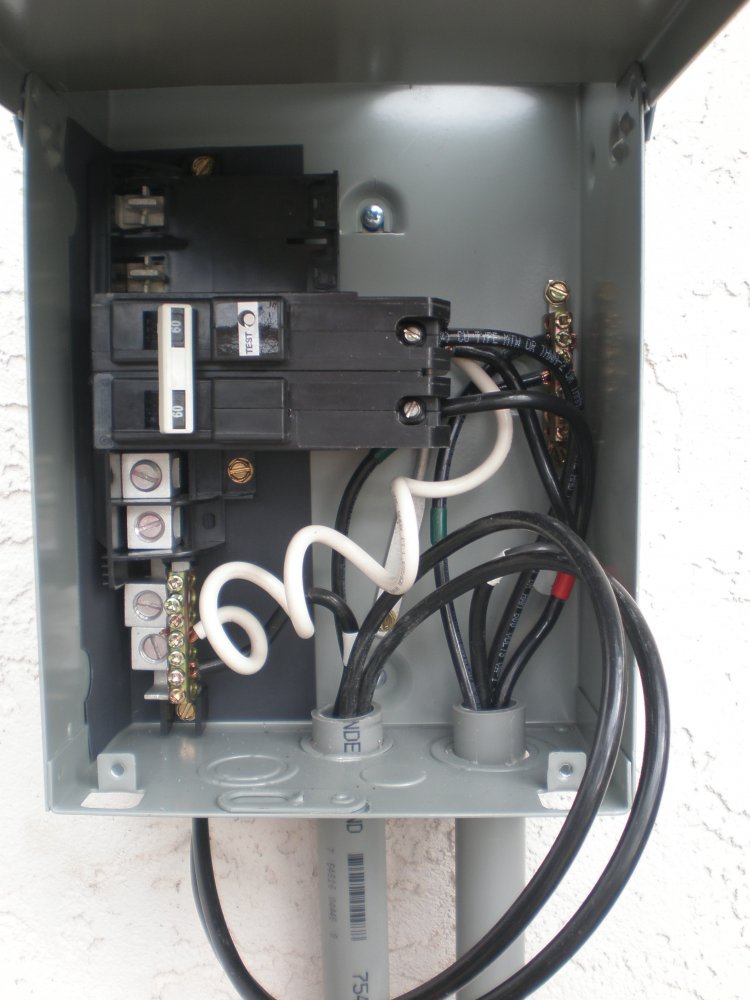

    I'm installing a spa with a Midwest Electric 60A GFCI spa disconnect panel (#UG412RMW260P)between the spa and the house main service panel, but I'm confused which lugs in the disconnect box to connect the "hot" wires (Red & Black) to from my house service panel? This panel has two sets of lugs below the GFCI breaker and I'm not sure if one set is for "black" and the other for "red" connections, or if one lug set is for one set of black and red connections and the other for a second set of black and red connections. Is anyone familiar with this panel's configuration and can lend some advice? Picture of the panel is attached.

    Attached Images Attached Images
    Search this Thread
    Share |
    3 Answers
    Dr_Spa's Avatar
    Dr_Spa Posts: 95, Reputation: 12
    Junior Member

    #2

    Feb 15, 2011, 09:31 PM

    Your incoming neutral wire is hooked up incorrectly and you're in violation of NEC with what you're using as the ground wire. I'd suggest calling an experienced, qualified, licensed electrician.
    Helpful
    tkrussell's Avatar
    tkrussell Posts: 9,638, Reputation: 722
    Senior Electrical & Lighting Expert

    #3

    Feb 16, 2011, 02:50 AM
    Typical DIY electrical work, no conduit connectors. Call in a professional to check and repair this installation.
    Helpful
    PizzaGuy's Avatar
    PizzaGuy Posts: 1, Reputation: 1
    New Member

    #4

    Jun 22, 2011, 09:48 PM
    the site below has a useful wirirng diagram. The problem with this device is that it is poorly labeled and the wiring diagram that comes with it is for a plug, not a hot tub.

    http://www.spadepot.com/spacyclopedia/wiring-hot-tub-spa.htm?gclid=CNO1x5LzyqkCFQYbQgodyA3LNw
    Helpful
