    Where is the bypass valve on the rainsoft house unit
    Where is the by-pass valve on the rainsoft system located? Want to disconnect it from my home and rainsoft is not willing to tell me (even ater years of problems and the unti has been paid off for years)
    speedball1's Avatar
    speedball1 Posts: 29,301, Reputation: 1939
    Eternal Plumber

    #2

    Dec 23, 2011, 10:17 AM
    Whereis the bypass valve on the rainsoft house unit

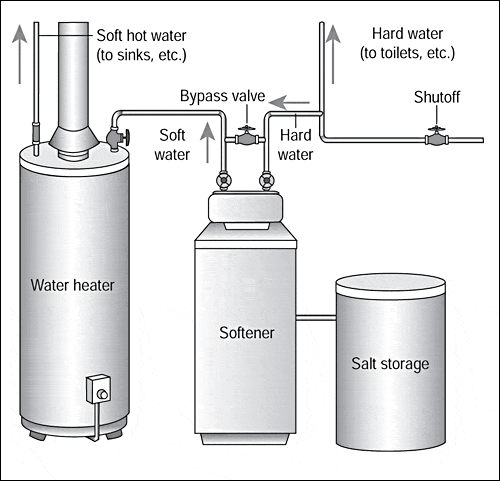

    I have researched Rainsoft Parts and can find on built in bypass valve so You must have a typical softener bypass,( see images). Simply close off the two vertical valves and open up the horizontal one and you have bypassed your softener. Good luck, Tom
    Attached Images

    Milo Dolezal's Avatar
    Milo Dolezal Posts: 7,192, Reputation: 523
    Plumbing Expert

    #3

    Dec 23, 2011, 11:12 PM

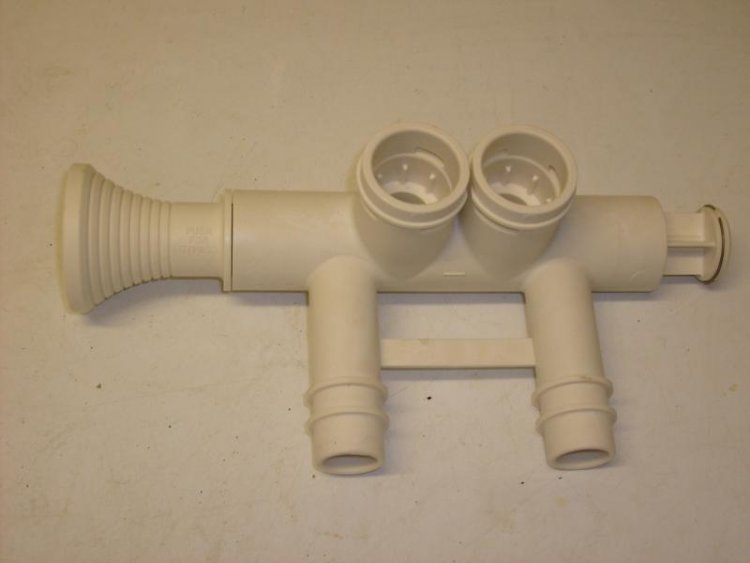

    Unless it is a very old water conditioning system, you will have a single valve with Push knob - not shown in Tom's post. They are supplied with each unit. You push it to one side for bypass and the other for conditioned water. The sides of the knob are usually marked "Push to By-Pass" . See the attachment. Back to you. Milo
    Attached Images

    speedball1's Avatar
    speedball1 Posts: 29,301, Reputation: 1939
    Eternal Plumber

    #4

    Dec 24, 2011, 05:30 AM
    I have researched Rainsoft Parts and can find on built in bypass valve so You must have a typical softener bypass,(
    Regards, Tom
