Venting Kitchen sink island

Asked Aug 14, 2007, 01:23 PM — 3 Answers
Hi, I have a kitchen sink in an island remodel we are doing. Do I need to vent this? If so , How? Thanks for all the help.

Search this Thread
Share |
3 Answers
stew_1962's Avatar
stew_1962 Posts: 254, Reputation: 53
Full Member

#2

Aug 14, 2007, 05:20 PM
Here yeah go:
Attached Images

MOWERMAN2468 (Aug 14, 2007 07:09 PM): drastic overkill.   Source:
Helpful
MOWERMAN2468's Avatar
MOWERMAN2468 Posts: 3,224, Reputation: 1378
Ultra Member

#3

Aug 14, 2007, 07:08 PM
Whew, that is a lot of plumbing there stew. How about purchasing a small under counter vent like used on a tub sometimes? I cost about $4.99 and would be about $25.00 cheaper than what is shown, and work the same and just as well. The $25.00 cheaper is not including the labor if you had to hire someone to do it.
stew_1962 (Aug 15, 2007 02:48 PM): An AAV isn't always compliant with local plumbing codes. A foot vent always is.   Source:
Helpful
speedball1's Avatar
speedball1 Posts: 27,664, Reputation: 9541
Senior Plumbing Expert

#4

Aug 15, 2007, 07:22 AM


Quote:
Originally Posted by rflynet
Hi, I have a kitchen sink in an island remodel we are doing. Do I need to vent this? If so , How? Thanks for all the help.

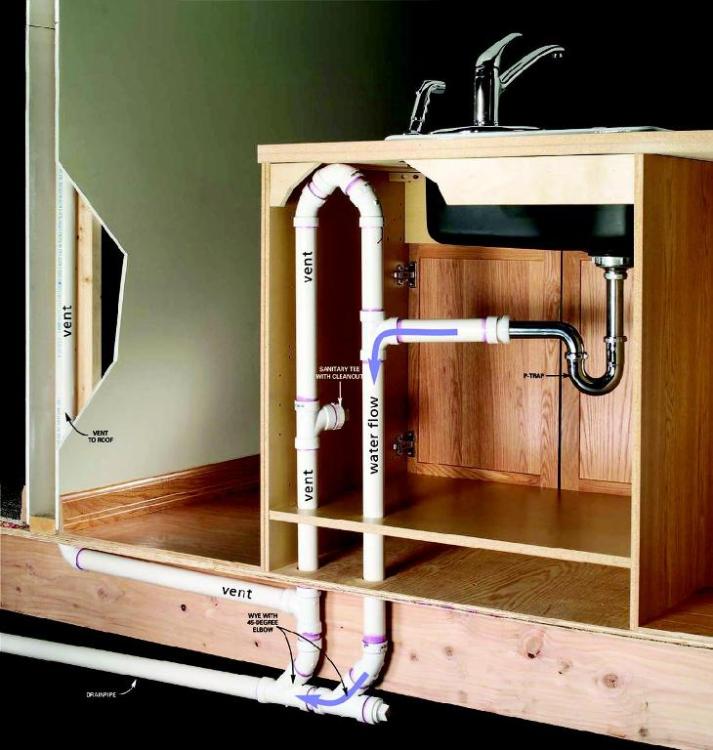

Yes, you will nee to vent the sink. Every fixture that has a trap has to, by code, be vented.Let me show you how a typical island vent installs,( see images.) Mowerman suggested a AAV,( Automatic Air Vent) in place of the vent return line but the problem with that is some local codes forbid it and AAV's can fail where a island vent can not. Just presenting you with all the oiptions. Good luck, Tom
Helpful
