    Sewer ejector pump venting in basement bathroom
    Sewage ejector pump was installed in finished basement bathroom. Sewer smell emanates in house at different times. Not always. On occasion (infrequent) when pump goes, a little water backs up though the washing machine line.

    The ejector pump has a vent, looks to be vented to the side of the house. A sink and shower drain to the ejector, the washing machine does not. The drains work fine, when I run the sink, the water in the shower trap does move slightly up and down. I am trying to find out if this is a venting issue... and advice how to eliminate sewer smell would be greatly appreciated
    speedball1's Avatar
    speedball1 Posts: 29,301, Reputation: 1939
    Eternal Plumber

    #2

    Nov 29, 2012, 02:43 PM
    And now you can tell me about your vents, Are there any AAV's installed? You should have a vent off your lavatory that revents back into the house system and a dedicated pit vent that doesn't connect to anything. Is that what you have? Let me know, Tom
    johnd2's Avatar
    johnd2 Posts: 5, Reputation: 1
    New Member

    #3

    Nov 29, 2012, 03:29 PM
    Yes... I am pretty sure... the Pit Vent looks like it exits side of house on first floor... not 100 % sure though it may tie back into to main vent stack (there is only 1 main vent stack in house)... the main house vent was not re-installed properly when roof was completed... once we fixed this vent... the smell was reduced quite a bit... however we recently had a new sewer injector installed and the smell now is seemingly worse than ever... only on occasion... it is almost a damp swampy smell as opposed to a sewer smelll
    speedball1's Avatar
    speedball1 Posts: 29,301, Reputation: 1939
    Eternal Plumber

    #4

    Nov 29, 2012, 03:39 PM
    Check that pit vent and get back with the results. If It's been revented back into the house vent you've located your problem., m Good luck, Tom
    johnd2's Avatar
    johnd2 Posts: 5, Reputation: 1
    New Member

    #5

    Nov 29, 2012, 10:07 PM
    Quote Originally Posted by speedball1 View Post
    Check that pit vent and get back with the results. If It's been revented back into the house vent you've located your problem.,,m Good luck, Tom
    The vent line runs 3 right angles... one about 2 feet above the pit to the wall than up the wall than up seeming to a vent opening in the side of the house... I will try to test with a hose tomorrow

    I teste the pump again, and the when pump ejects, water comes back up through the drain for the washing machine... just a little seems to bubble up... the washing machine does not drain to ejector pit... confusing... thanks for any help
    speedball1's Avatar
    speedball1 Posts: 29,301, Reputation: 1939
    Eternal Plumber

    #6

    Nov 30, 2012, 08:40 AM
    If you have to pump the sewage up to the main then how does the washer discharge up to the main since the washer isn't draining into the pit? Please explain. Back to you. BTom
    johnd2's Avatar
    johnd2 Posts: 5, Reputation: 1
    New Member

    #7

    Nov 30, 2012, 09:40 AM
    Quote Originally Posted by speedball1 View Post
    If you have to pump the sewage up to the main then how does the washer discharge up to the main since the washer isn't draining into the pit? Please explain. Back to you. bTom
    The washing machine is higher than the drain and always drained into the main prior to the bathroom remodel and ejector pit being installed. My guess is they just left that line as is..

    Thanks again

    Quote Originally Posted by johnd2 View Post
    The washing machine is higher than the drain and always drained into the main prior to the bathroom remodel and ejector pit being installed. My guess is they just left that line as is..

    Thanks again
    Also I did test the vent with hose and the ejector pit is definitely vented to the side of the house. Thanks again

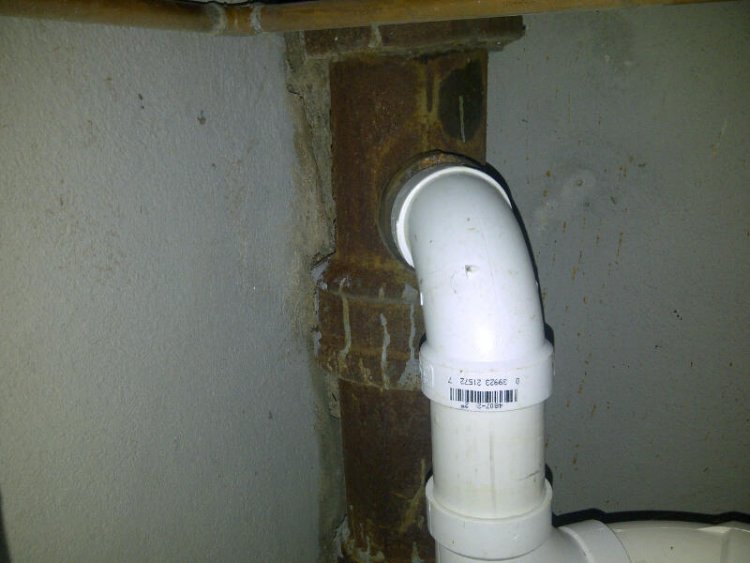

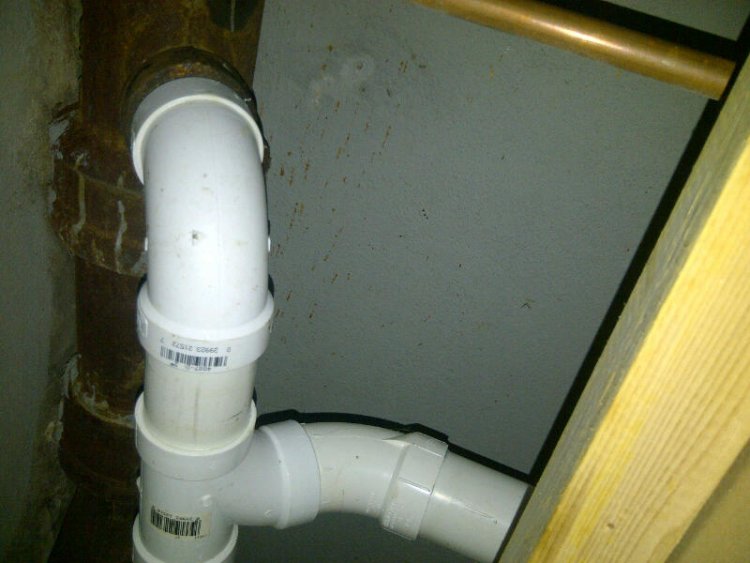

    Here are some pictures... thanks again!

    Quote Originally Posted by johnd2 View Post
    Also I did test the vent with hose and the ejector pit is definitely vented to the side of the house. Thanks again

    Here are some pictures...thanks again!!

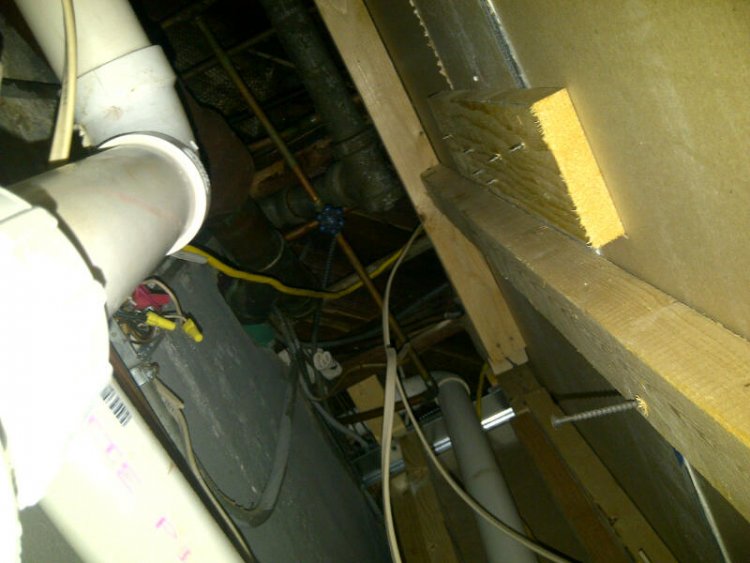

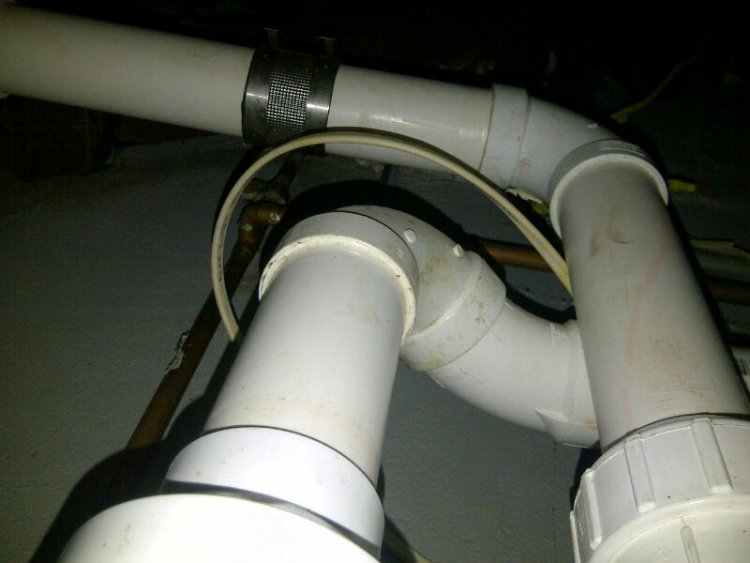

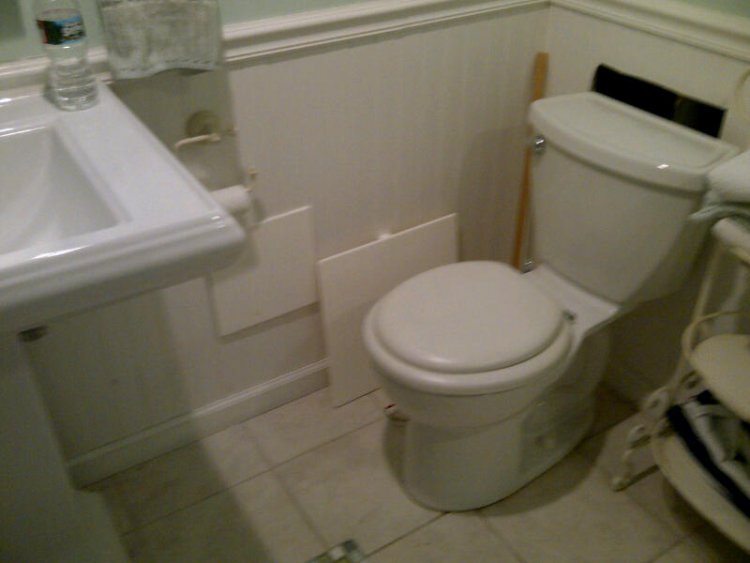

    A few more pix
    Attached Images

    speedball1's Avatar
    speedball1 Posts: 29,301, Reputation: 1939
    Eternal Plumber

    #8

    Nov 30, 2012, 02:23 PM
    when pump ejects, water comes back up through the drain for the washing machine.

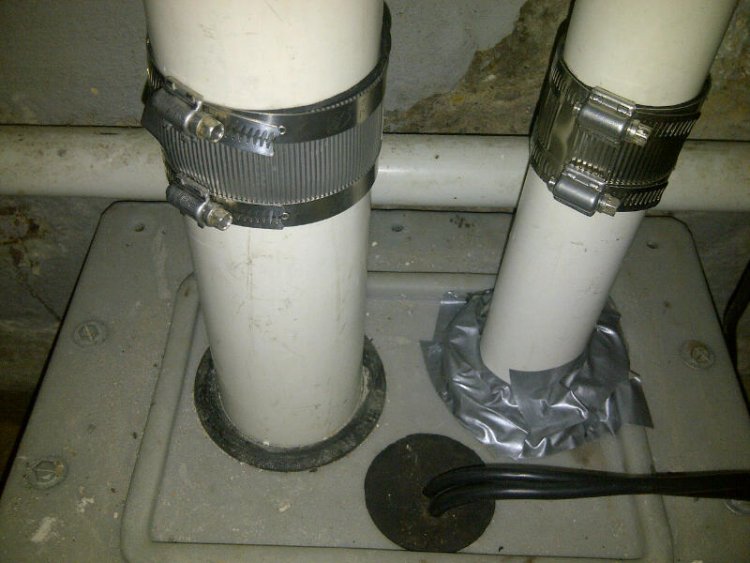

    You just told me that you have a partial blockage downstream from the washer. It's going to take quite a but of back pressure to back water up a 3' washer stand pipe. At the same time you have enough backpressure to give the water a 3 foot head you also have enough back pressure to expel sewer gas. I think you've just located the source of your stinky. I also see duct tape around the pit vent opening. Is sewer gas leaking from the connecdtion? Snake ( Not the hose) the drain line from the washer and see if old stinky doesn't go bye bye. Good luck, Tom
    ma0641's Avatar
    ma0641 Posts: 15,675, Reputation: 1012
    Uber Member

    #9

    Nov 30, 2012, 05:09 PM
    Yes and put all those wires in a junction box!
    smearcase's Avatar
    smearcase Posts: 2,392, Reputation: 316
    Ultra Member

    #10

    Nov 30, 2012, 08:34 PM
    What is the duct tape for?
    johnd2's Avatar
    johnd2 Posts: 5, Reputation: 1
    New Member

    #11

    Nov 30, 2012, 08:56 PM
    The seal to one stack was a little loose... slightly... the duct tape helped the seal...
    Johnd22's Avatar
    Johnd22 Posts: 1, Reputation: 1
    New Member

    #12

    Dec 9, 2013, 07:37 PM
    The washing machine drain connects at a 45 degree angle to the ejectors descending line to the main. It does not drain to ejector pit. Shower and sink do not have dedicated vents just drain to the pit.
