I'm in the process of remodeling our half bath. This bathroom originally had a toilet and vanity. I am planning on adding in a neo angle shower and obviously a new toilet and vanity, which will be in different places that they originally were.

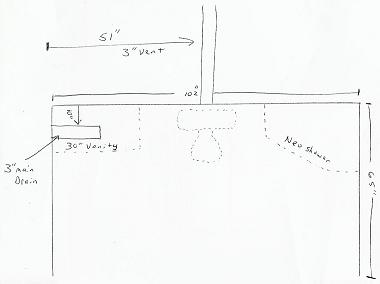

I have attached a floor plan of our new bathroom and was wondering if you could provide me with a plumbing schematic for my new bathroom based on my floor plans.

The biggest reason I am asking for this is due to the current location of our vent pipe.

Any help that you can provide would be appreciated.

Thanks in advance.

Shane


--------------------------------------------------------------------------------

Attached Images



speedball1

Thanks for moving over here Shane,
The 3" vent that you show. Does anything drain into it from up stairs? tom

fossan

No, the 3'' vent goes straight through the roof. We have a ranch style house, one level with crawl space and attic.

speedball1

Hey Shane, See if this works for you. Tom

fossan

In your attachment I am a bit confused. Does the 3'' vent continue down the wall in line with the toilet drain?

Sorry for the dumb questions, but this is my first major plumbing project.

Thanks for ALL of your help!

Shane

speedball1

No , The three inch vent remains where it's at and both vents from the shower and the lavatory revent(see dotted lines) back into it. Regards, Tom
