Home > Home & Garden > Plumbing   »   Pipe noise following toilet flush


Thread Tools Search this Thread Display Modes
Question


Old Jan 13, 2008, 01:25 PM
mkct
New Member
mkct is offline

Join Date: Jan 2008
Posts: 1
mkct See this member's comment history on his/her Profile page.
Pipe noise following toilet flush

serious noise and vibration coming from pipes following toilet flush. I know it's air in the pipes, how do I get air out and stop the noise?

Reply With Quote



Answers


Old Feb 28, 2009, 11:49 AM   #11
New Member
tolsti is offline

Join Date: Jan 2009
Posts: 2
tolsti See this member's comment history on his/her Profile page.
Quote:
Originally Posted by apierce14 View Post
Hi. i am interested in trying the above... however, what do you mean by "cap?" is that in the tank, or at the wall junction, or at the pipe to the bottom of the tank connection? I am confused.
Ok, sorry for the ambiguous nomenclature. The "cap" I refer to, the one that needed to be loosened up a little, is inside the tank. It is the top of the "water control assembly" and where the "refill tube" comes from. (See attached picture below). When I simply loosened this "cap" a small amount, all of the shaking and noises stopped.

And after having some time, I figured out why. When the cap is on too tightly, it causes a pressure problem. The water coming in is usually stopped by the flow adjustment lever (right where the float ball's arm meets the water control assembly) at the top of the cap. This is because as the float ball rises in the tank, the flow adjustment lever is slowly pushed down to stop the flow of incoming water. But, when the cap is on too tightly, it causes the incoming water to have more pressure, which then makes it "fight" the adjustment lever. (Kinda like when boiling water makes the pot's lid jump around). While these two try to tuff out an equilibrium, it shakes the pipes and makes a lot of noise. Finally, however, equilibrium is reached and the noises stop. By loosening the cap, it reduces the pressure of the incoming water, so that the lever can win the battle.

Again, I think this should be a first step, and if it doesn't fix the problem, then go on to the other solutions, because you're problem may be different. If you find that upon the refilling of the tank, you can pull up on the float ball at any time and the water stops without making sounds, then it is probably that the cap is on too tightly. That's how I knew this was the problem.
Attached Images

  Reply With Quote




Old Feb 28, 2009, 01:14 PM   #12
Ultra Member
afaroo is offline

Join Date: Aug 2007
Location: California
Posts: 1,881
afaroo See this member's comment history on his/her Profile page.
Toilet will make noise for two reason, if the angle valve has a loose washer at the end of the stem, or dirt in the fill valve, next time when you flush your toilet and if starts the noise open the angle valve completely turn it clock wise, if the sound disappears it is a loose washer in the angle valve, if not then see the images below and tell me which fill valve do you see inside your tank and let us know and we will tell what to do , also we will help how to replace the washer in the angle valve, Thanks.
Attached Images

  Reply With Quote




Old Feb 28, 2009, 01:36 PM   #13
New Member
apierce14 is offline

Join Date: Feb 2009
Posts: 5
apierce14 See this member's comment history on his/her Profile page.
Quote:
Originally Posted by tolsti View Post
Ok, sorry for the ambiguous nomenclature. The "cap" I refer to, the one that needed to be loosened up a little, is inside the tank. It is the top of the "water control assembly" and where the "refill tube" comes from. (See attached picture below). When I simply loosened this "cap" a small amount, all of the shaking and noises stopped.

And after having some time, I figured out why. When the cap is on too tightly, it causes a pressure problem. The water coming in is usually stopped by the flow adjustment lever (right where the float ball's arm meets the water control assembly) at the top of the cap. This is because as the float ball rises in the tank, the flow adjustment lever is slowly pushed down to stop the flow of incoming water. But, when the cap is on too tightly, it causes the incoming water to have more pressure, which then makes it "fight" the adjustment lever. (Kinda like when boiling water makes the pot's lid jump around). While these two try to tuff out an equilibrium, it shakes the pipes and makes a lot of noise. Finally, however, equilibrium is reached and the noises stop. By loosening the cap, it reduces the pressure of the incoming water, so that the lever can win the battle.

Again, I think this should be a first step, and if it doesn't fix the problem, then go on to the other solutions, because you're problem may be different. If you find that upon the refilling of the tank, you can pull up on the float ball at any time and the water stops without making sounds, then it is probably that the cap is on too tightly. That's how I knew this was the problem.
OMG! That's definitely the problem... when i pull up on the float ball right before the tank finishes filling it doesn't shake... but when I try to "loosen" the cap (turn to left) the float ball hits the back of the tank. In other words, I can't turn it independently... ack! what a bummer... but at least I definitely know what's wrong, I just can't figure out how to make the float ball come all the way up "quickly" so it won't shake... I tried bending the pipe holding the ball, but it interferes with the piston thing that goes down and tells the tank to start filling... either way, I'm half way to a solution... I know the problem
  Reply With Quote




Old Feb 28, 2009, 01:50 PM   #14
New Member
apierce14 is offline

Join Date: Feb 2009
Posts: 5
apierce14 See this member's comment history on his/her Profile page.
Quote:
Originally Posted by afaroo View Post
Toilet will make noise for two reason, if the angle valve has a loose washer at the end of the stem, or dirt in the fill valve, next time when you flush your toilet and if starts the noise open the angle valve completely turn it clock wise, if the sound disappears it is a loose washer in the angle valve, if not then see the images below and tell me which fill valve do you see inside your tank and let us know and we will tell what to do , also we will help how to replace the washer in the angle valve, Thanks.
Mine looks more like the second attachement (the colorful one with numbers) When I pull up on the float ball (3 & 1) at the end of the fill cycle, the pipes don't shake. but the float ball is connected to the center of the cap... so I can't turn the cap without turning the ball as well, so the ball hits the back of the tank and won't go up or down. Basically... I need the float ball to "come up" "quickly" at the end of the cycle so that the pipes won't shake.. but I can't figure out how to do that... see attached
Attached Images

  Reply With Quote




Old Feb 28, 2009, 01:51 PM   #15
Ultra Member
afaroo is offline

Join Date: Aug 2007
Location: California
Posts: 1,881
afaroo See this member's comment history on his/her Profile page.
Open the link below will show hot to adjust the ballcock and how to set the water level, if thsi will not help, I would suggest to replace the fill valve with a Fluidmaster 400A, good luck.

John

Replace The Toilet Fill Valve, Flush Valve Or Flapper | Plumbing Projects | Reader's Digest

Comments on this post
apierce14 agrees: Awesome! Totally worked and stopped the pipe shaking!
  Reply With Quote




Old Feb 28, 2009, 01:53 PM   #16
Ultra Member
afaroo is offline

Join Date: Aug 2007
Location: California
Posts: 1,881
afaroo See this member's comment history on his/her Profile page.
Wow it is time to change with a new one, good Luck.

John
  Reply With Quote




Old Feb 28, 2009, 01:55 PM   #17
New Member
apierce14 is offline

Join Date: Feb 2009
Posts: 5
apierce14 See this member's comment history on his/her Profile page.
Quote:
Originally Posted by tolsti View Post
Ok, sorry for the ambiguous nomenclature. The "cap" I refer to, the one that needed to be loosened up a little, is inside the tank. It is the top of the "water control assembly" and where the "refill tube" comes from. (See attached picture below). When I simply loosened this "cap" a small amount, all of the shaking and noises stopped.

And after having some time, I figured out why. When the cap is on too tightly, it causes a pressure problem. The water coming in is usually stopped by the flow adjustment lever (right where the float ball's arm meets the water control assembly) at the top of the cap. This is because as the float ball rises in the tank, the flow adjustment lever is slowly pushed down to stop the flow of incoming water. But, when the cap is on too tightly, it causes the incoming water to have more pressure, which then makes it "fight" the adjustment lever. (Kinda like when boiling water makes the pot's lid jump around). While these two try to tuff out an equilibrium, it shakes the pipes and makes a lot of noise. Finally, however, equilibrium is reached and the noises stop. By loosening the cap, it reduces the pressure of the incoming water, so that the lever can win the battle.

Again, I think this should be a first step, and if it doesn't fix the problem, then go on to the other solutions, because you're problem may be different. If you find that upon the refilling of the tank, you can pull up on the float ball at any time and the water stops without making sounds, then it is probably that the cap is on too tightly. That's how I knew this was the problem.

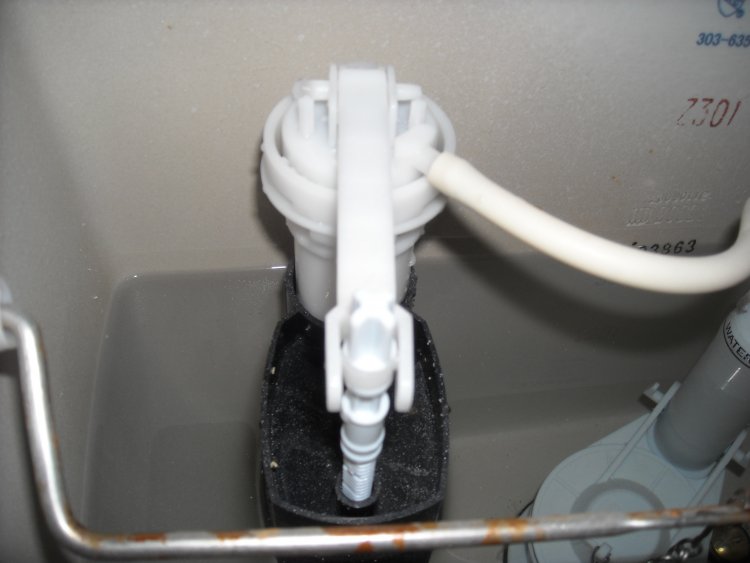

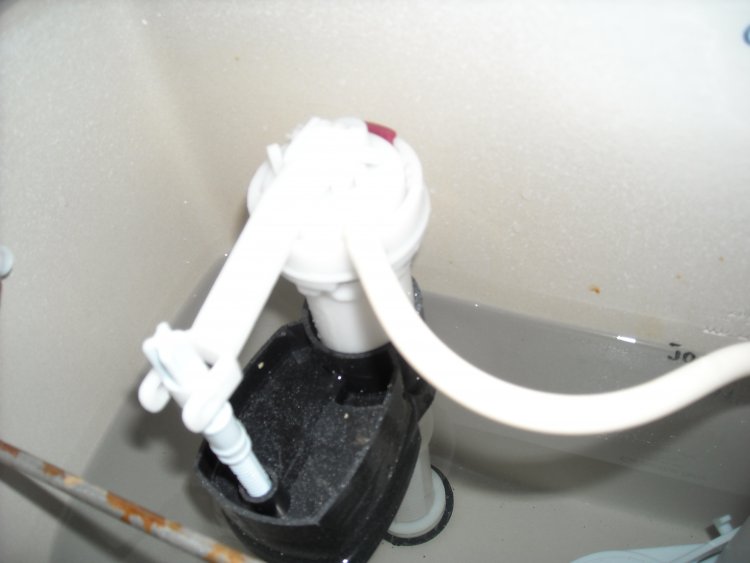

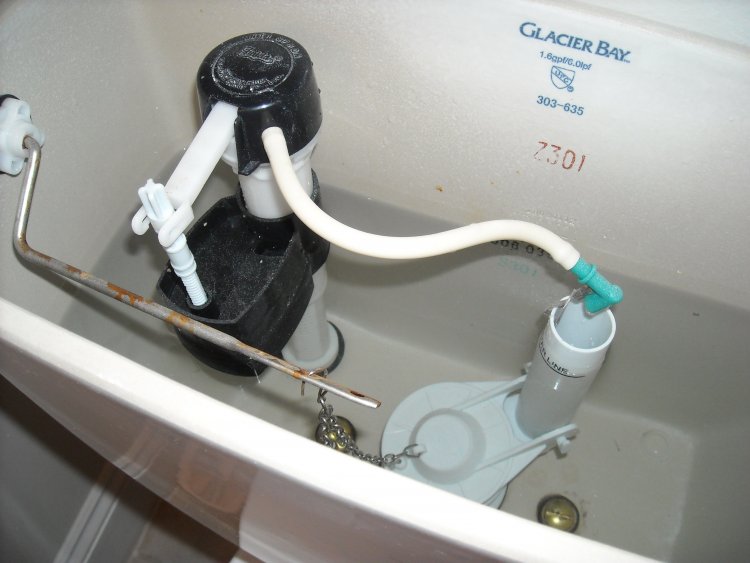

Here are some photos... I can't turn the "cap" independently from the float ball... any suggestions... that's definitely the problem
Attached Images

  Reply With Quote




Old Feb 28, 2009, 01:55 PM   #18
Plumbing Expert
massplumber2008 is offline

massplumber2008's Avatar

Join Date: Jan 2008
Location: Boston, Massachusetts
Posts: 5,446
massplumber2008 See this member's comment history on his/her Profile page.massplumber2008 See this member's comment history on his/her Profile page.massplumber2008 See this member's comment history on his/her Profile page.massplumber2008 See this member's comment history on his/her Profile page.massplumber2008 See this member's comment history on his/her Profile page.
Hi all:

That unit is way overdue to be changed out. Just like John said...replace that fill-valve with a new fluidmaster 400A. Takes about 15 minutes...

The copper ball is probably full of water and the seals are gone at the fill-valve itself. Not worth repairing.

Good luck!

MARK

Comments on this post
apierce14 agrees: Fantastic! Stopped the pipe shaking!
  Reply With Quote




Old Feb 28, 2009, 01:56 PM   #19
Ultra Member
Milo Dolezal is offline

Milo Dolezal's Avatar

Join Date: Jun 2008
Location: So. California
Posts: 3,734
Milo Dolezal See this member's comment history on his/her Profile page.Milo Dolezal See this member's comment history on his/her Profile page.Milo Dolezal See this member's comment history on his/her Profile page.
It is 23 years old fill valve. Do as John said. Also, this unit doesn't have conventional flopper - but a large round seal on the bottom of the moving tube. Remove that old seal, go to Home Depot, get new one and install it. You don't have to replace whole fill tube and "flopper" tube...
  Reply With Quote




Old Feb 28, 2009, 01:57 PM   #20
New Member
kmonsteruk1 is offline

Join Date: Jul 2008
Posts: 5
kmonsteruk1 See this member's comment history on his/her Profile page.
Quote:
Originally Posted by mkct View Post
serious noise and vibration coming from pipes following toilet flush. I know it's air in the pipes, how do I get air out and stop the noise?
Is your toilet fed by the mains or from a tank? If its fed from the mains it should have a flow regulator inserted into the pipe which connects to the ball valve assembly.

that is usually the problem with noise after a flush! If you find another solution please let me know as i am curious to find a solution to that

[email address]
  Reply With Quote
