Howdy all,

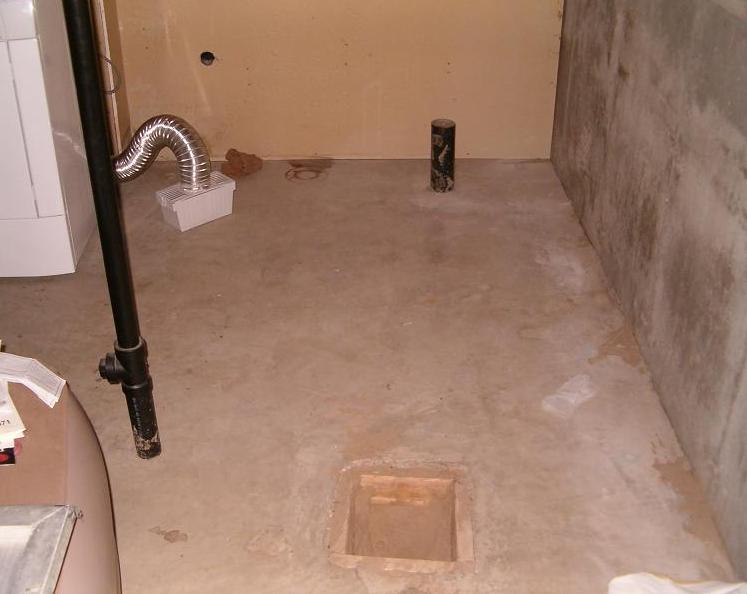

Here’s my problem: I have an 8” x 8” hole in the basement that was not cemented with the rest of the floor. I believed I would find a drain for the tub (because the location seems reasonable, and waste plumbing is already in place for a toilet and sink.)
However, upon digging down over 14”, I still haven’t found a pipe of any sort. Is there a purpose for this mystery hole???

Could I possibly use an adjacent vent/clean-out looking pipe for the drain??

See Picture.

Thanks
-Axelworks

Attached Images



speedball1

Sure looks like a tub dap-out to me. Did you dig out instead of down and hunt for a horizontal pipe that you could connect a trap to? The average measure for a tub raiser is 15 1/2" out from the wall and 1 1/2 " out from the front plate. Look again and let me know. Tom

axelworks

Tom,

I checked the location of the hole: The leading edge is 23" from the unfinished cement wall, and the far edge is 32" from the wall.

I dug into the sides a bit more like you suggested, but still found no horizontal pipes. How deep can these things be if there is one?

Also, in the picture, you see another pipe sticking up from the floor to the ceiling. It runs back to the far wall and ties into the main drain line. Could I possibly use this as the tub drain??

Thanks
-A

letmetellu

Is this a fairly new house? If so you may be able to find someone with a set of plans that would show how they had planned to lay out the bathroom in the basement.
If I were you I would dig toward the concrete wall, like Tom said the drain should be about 15 1/2 inches from the concrete wall if that is the way they had planned to lay out the tub.
About the pipe sticking up and running to the ceiling, tis is probably for the tub drain, I am not sure why else it would be there. If it is the vent for the tub then I think they had planned to have a wall there to cover up the pipe so in that case maybe the tup was going to be against that wall making the drain 15 1/2 inches from that wall.

speedball1

I'd dig toward that vertical pipe. Since it has a clean out I believe it's a drain from upstairs and if it is you will have to vent anything that connects to it. Try to locate the plumber that put the job in. Short of a set of as-built plans that's your best bet. Good luck, Tom

axelworks

This house was built 25 years ago. As far as plumbing blueprints - would there be a copy at the county courthouse, chamber of commerce, ??

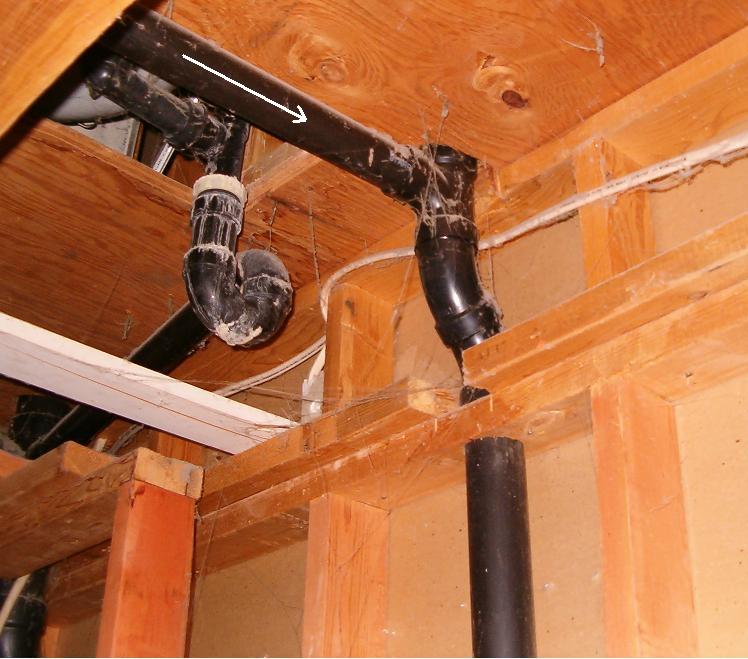

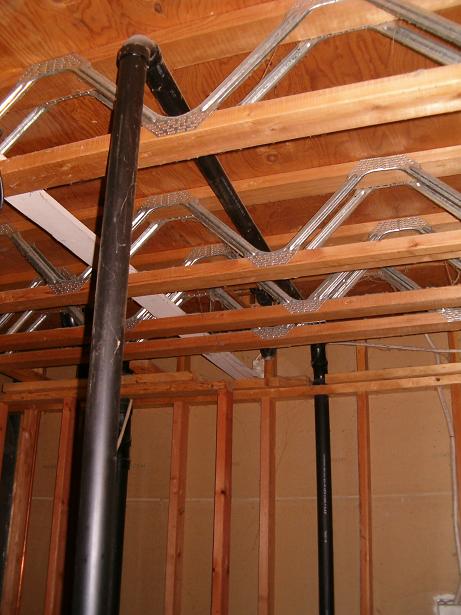

The pipe that rises from the floor takes a 90 in the ceiling, travels toward the back wall, and ties into a bigger ABS drain pipe ( please see pics)

With this being the case, could one cut this pipe near the cleanout, and use it as the tub drain? Then place re-route the vent to tie back into this existing run?

Thanks
-Ax
