    Floor Drain Installation

    Asked Mar 6, 2006, 02:13 PM — 6 Answers
    Hello,

    I need some help installing a floor drain. However, the situation is not such a simple one.

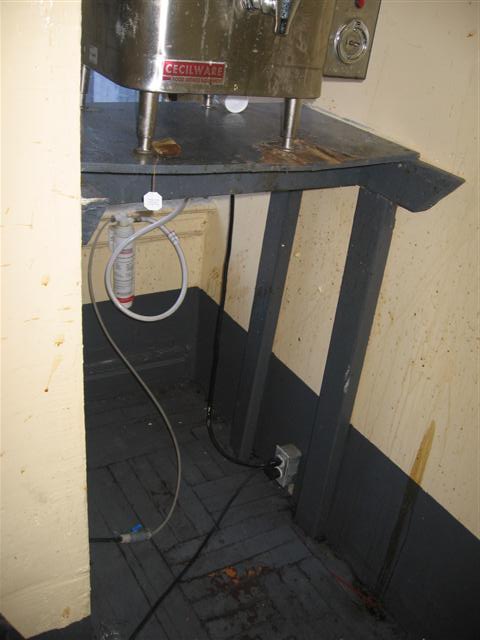

    The first picture (below) shows the job site. What makes this situation unique is that it is not a tiled or otherwise waterproof floor, nor does the owner plan to do so in the near future; in fact the main purpose of the drain is to be positioned directly underneath the spout of the 25-gallon Cecilware hot water urn to catch any spills (or if some moron turns on the spout without holding a coffee cup underneath it). Rather, the current floor is just wood (and I am not entirely sure how thick it is, although I can find out, if necessary). On the plus side, I have access to the floor from above as well as below - beneath the floor is a more-or-less unfinished basement.

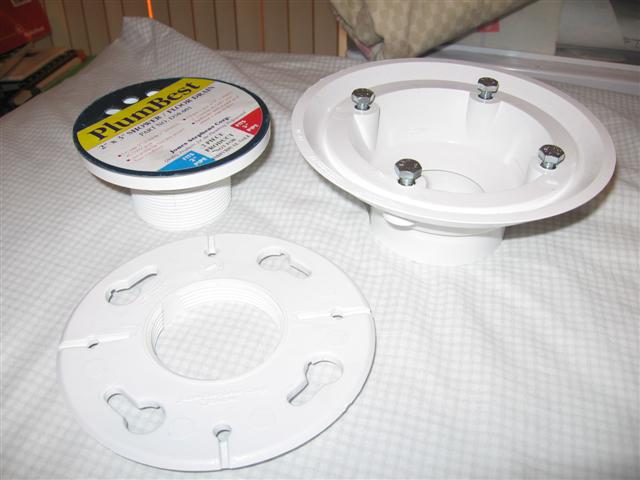

    The drain I purchased is a PlumBest D50-001, which I chose (perhaps foolishly) because the label on it advertised it as a "shower/floor drain". I believe it is what Tom usually refers to as a "flange-type shower drain". I found this semi-useful page on the manufacturer's website, which lists a bunch of specs for that particular series of model numbers, but no installation instructions/tips.

    So simply put, my question is: how do I install the drain in the floor? What I'm trying to accomplish is to cut a hole in the wood the exact size of the strainer, and install the drain so that the strainer is flush with the floor. Is this possible at all? Will I have to exchange this for a different kind of drain? Or this a lost case altogether?

    Thanks,
    Moishe

    Attached Images Attached Images
    Last edited by PalmMP3; Mar 6, 2006 at 02:22 PM.
    Please click Rate this Answer! (below) if this post was helpful.

    Windows Registry (win’doz rej’i-stre) n. Microsoft's way of putting all your eggs in one basket.
    Search this Thread
    Share |
    6 Answers
    speedball1's Avatar
    speedball1 Posts: 28,595, Reputation: 1911
    Senior Plumbing Expert

    #2

    Mar 7, 2006, 05:40 AM


    Moshie,

    That shower strainer just ain't going to work. Besides,it's the wrong shape for the purpose you intend it for. I poked around the internet and found one that I think may may work better. Zurn has a rectangular drain with a 2" outlet that will accommodate a 2" "P" trap. Click on http://www.zurn.com/pages/catalog.as...4&page=6#p2067
    And scroll to the bottom of the page and check out Z-573 Gutter drain.
    This type of drain will give you more area underthe coffee urn to control spills then a round type drain. Good luck, Tom
    Helpful
    dclynch's Avatar
    dclynch Posts: 190, Reputation: 19
    Junior Member

    #3

    Mar 7, 2006, 07:20 AM
    What about using an overflow pan such as that for a washing machine instead of a drain. Since you are not sloping the floor towards the drain, and a spill might come from an unpredictable direction off the table, a pan would probably offer more security as well as being temporary in case the system is moved or discontinued.
    Helpful
    speedball1's Avatar
    speedball1 Posts: 28,595, Reputation: 1911
    Senior Plumbing Expert

    #4

    Mar 7, 2006, 07:51 AM


    Quote Originally Posted by dclynch
    What about using an overflow pan such as that for a washing machine instead of a drain. Since you are not sloping the floor towards the drain, and a spill might come from an unpredictable direction off the table, a pan would probably offer more security as well as being temporary in case the system is moved or discontinued.

    I can see a problem with setting a large wash machine overflow pan on the floor that you have to stand in before you can pour a cup of coffee. Awkward to say the least. Cheers, tom
    Helpful
    PalmMP3's Avatar
    PalmMP3 Posts: 320, Reputation: 28
    Full Member

    #5

    Mar 7, 2006, 12:12 PM
    Hmmmmmm... I can't seem to find a lot of places selling that online... funny...

    Besides, I'd rather buy locally from Lowe's or Home Depot (quicker than waiting for shipping, plus I can return it if necessary). Should I just go to Lowe's/HD and look for a "gutter drain" from any manufacturer, if they have one?

    Thanks,
    Moishe
    Helpful
    speedball1's Avatar
    speedball1 Posts: 28,595, Reputation: 1911
    Senior Plumbing Expert

    #6

    Mar 7, 2006, 03:30 PM


    Moishe,
    You're looking for a special application floor drain. I doubt very much if Home Depot even knows what a gutter drain is, let alone carry one. You're not going to find anything any better. It took me damm near a hour of searching the web to come up with that. Buy from Zern or search the net for yourself. Regards, Tom
    Helpful
    PalmMP3's Avatar
    PalmMP3 Posts: 320, Reputation: 28
    Full Member

    #7

    Mar 7, 2006, 06:09 PM
    Okay, thanks.
    Helpful
