Fixtures at wall water line to toilet
Asked May 18, 2008, 12:21 PM
—

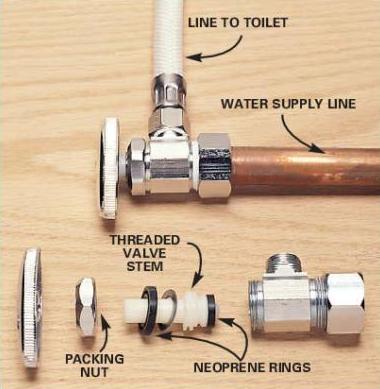

15 Answers The flexible hose that connects the water line to the toilet tank broke. It is soldered on to the T-connector, making its replacement a little difficult. I turned off water to toilet and the main water line and started to loosen the T-connector nut to no avail. I then tried to loosen the nut that attaches to the copper water pipe from the wall. Thing I could get it off that way. It was tight, but then budged and now the problem is that it turns freely counter and counterclockwise without loosening or tightening. For reference, my set-up is similar to this picture except of course the line to the tank is soldered and not independently replaceable. Any suggestions will be appreciated. http://www.askmehelpdesk.com/attachm...tershutoff.jpg |
15 Answers
| ||||
| | ||||
| |
| ||||
| These are compression fittings. You have to hold one end (the valve) with a wrench and loosen the nut on the line. When the nut clears the fitting, it should be free. At this point I suspect that corrosion is holding it in place. Once the nut is loose, you should be able to twist and pull the valve off. Can you post a picture, especially of the "T" connector. Use "Go advanced" to do so. | ||||
| |
| ||||
| Quote:

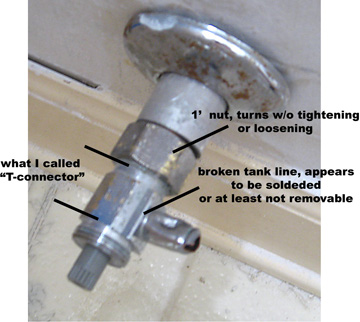

Thank you Tom for such prompt attention. I am sorry that my terms are not accurate. My problem is pretty basic and I have attached a picture (I hope) that clarifies my situation. (the picture is not in perfect focus, sorry). As you may be able to tell, I am remodeling my bathroom and the 16 year old line to the tank broke off as I was reattaching the toilet tank. It appears to be soldered on to the fitting and not removable with a simple nut. I just do not know how to get the fixture(s) off so I can get a replacement. | ||||
| |
| ||||
| The "T" connector is an "angle stop". Looks like your right that the "supply tube" is an integral part. It looks like the grey part is just a tube to make things look nice. I'll bet if you pull on the "T connector" it would expose some copper pipe. Hole your "T connector" with a wrench. Place another wrench on the nut and push downward. Your replacement will probably be two piece. A 1/4 turn 5/8 compression to 3/8 compression angle stop. 5/8 compression fits 1/2" copper tubing. Then you can use braided toilet supply tube with a 3/8 compression fitting on the angle stop end. Once the threads are completely exposed twist the "T" connector and pull. I suspect your not holding the "T connector" | ||||
| |
| ||||
| Actually, KISS told you how to remove this ! You want to shut water off to the house and then use two pair of pliers or a crescent wrench and pliers and loosen the nut off the shutoff. Then want to get a 5/8" compression x 3/8" compression ANGLE shutoff at local home suppy store. If lucky, can use old nut and compression sleeve...but most likely will need to remove the old nut and sleeve and install a new nut and sleeve (comes with new shutoff). Then install new shutoff, compression sleeve and nut (tighten hand tight plus a turn or so). They make a handle puller/compression sleeve removal tool....see pic. Below. You should purchse this in case you need to remove the old sleeve and nut. Then you want to purchase a new FLEXIBLE closet supply (3/8" compression x 7/8' compression x 12" closet supply) and connect from the shutoff to toilet tank. This should fix you all up here...let us know what you think...MARK Hey KISS...we posted at same time...  Good answer as usual! | ||||
| |
| ||||
| Quote:
You guys are great! I am sure glad I found this sight. I got this problem fixed up in about 10 min once I bought some better socket wrenches and loosened everything up. I even replaced the original compression nut (with no leaks). The braided closet supply is really the only way to go with this set-up. It's too bad the original builder of my home used such poor fixtures. Thanks again! | ||||
| |
| ||||
| Quote:
I spoke too soon. I did install the replacement fittings for this problem, but my remodeling efforts kept me from putting my toilet tank back on. I just did, and am getting a leak at the angle stop (or so it seems). I tightened things pretty hard. The new angle stop had a compression ring on the 3/8 nut to the closet supply, but I did not see how to use this as the flexible tube hose has a washer in it at the 3/8 nut. I guess that is my problem. I would appreciate some more advice here. Thanks! | ||||
| |
| ||||
| Hey Tav: My guess here is that you may have actually overtightened the 3/8" compression nut. You were correct in NOT using the brass ferrule (compression ring)...so that will not be the issue here. The new 3/8" compression nut (from the new flexible toilet riser) should have been hand tightened plus a full turn or two...but you did not want to cinch it down tightly! In fact, if overtightened to extreme can separate from the angle shutoff completely! You also have a packing nut at the new shutoff...after opening fully give that packing nut a cinch down to keep from leaking in the future! You may also want to double check the joints ABOVE the 3/8" compression nut...SOMETIMES small leak from above shows up at the bottom nut...so take a piece of toilet paper and wrap it around the upper part of the closet riser and see if it gets wet..if it does....problem is actually at the upper nut. Anyway, sounds like you overtightened nut to me...and now you need to purchase A NEW Flexible closet riser...  Let me know what you think here TAV...MARK . | ||||
| |
