gibbyson41 · Feb 9, 2010, 02:03 PM

When using faucet sprayer it used to shut water off from faucet. Now, it continues to run through faucet while coming out the sprayer. What can I do to resolve this problem. Thanks in advance for any help.

Milo Dolezal · Feb 10, 2010, 12:24 AM

There is a built-in diverter. It is located inside the column of the faucet. It most likely has some debris in it preventing it from functioning properly. To fix it: close h/c water, take faucet column apart, clean diverter ( or replace it ), reinstall it, turn water back on... Now, it should work...

gibbyson41 · Feb 23, 2010, 03:22 PM

Originally Posted by Milo Dolezal

There is a built-in diverter. It is located inside the column of the faucet. It most likely has some debris in it preventing it from functioning properly. To fix it: close h/c water, take faucet column apart, clean diverter ( or replace it ), reinstall it, turn water back on....Now, it should work...

Thanks milo for the help. I will try it.

speedball1 · Feb 23, 2010, 04:13 PM

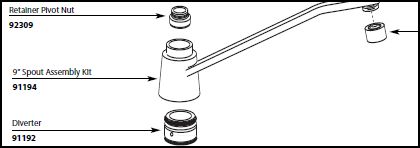

Milo nailed it! Let me help you out with a image to show you where diverters live.n Flush out the diverter space and reassemble. Good luck, Tom

gibbyson41 · Feb 24, 2010, 01:58 PM

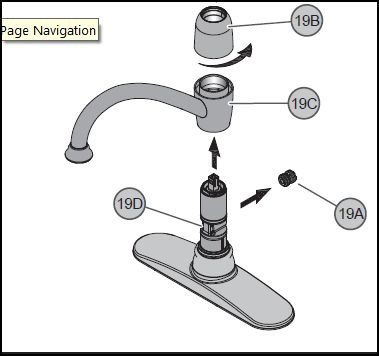

SPEEDBALL, 19A in your diagram is what I do not know how to get out. I have cleaned everything else and it still does not work. Is 19a the diverter and how do I remove? Fyi-- it is on the back of my faucet.

royals91 · Feb 24, 2010, 08:23 PM

What brand of faucet do you have

afaroo · Feb 24, 2010, 09:39 PM

I believe you have Delta faucet 100-110-400 and over, the diverter is the same part number RP320, the PDF files may help you go to page 9 and it will tell to clean the diverter, I would suggest to remove the diverter clean and install see if it will help, if not you would need to replace it, you can get a replacement from Delta for free just call their customer service at 800-345-3358
Good luck.

Sorry I was not able to attach the PDF file

John

Open the link below, once it is open down load the maintenance and installation owner manual, and then go to page 9 will tell about the maintenance and troubleshooting, good luck.

John

Product Documentation : Customer Support : Delta Faucet

royals91 · Feb 24, 2010, 10:11 PM

If the diverter is the problem send me your address and I will send to you the RP 320 to replace your diverter.

afaroo · Feb 24, 2010, 10:16 PM

Hi Royal,

Excellent we will be contacting you, thanks for your help.

Regards,
John

gibbyson41 · Feb 25, 2010, 07:23 PM

It is a koehler Forte. Looks just like speedballs diagram. It would be part 19a in diagram. I am not sure how to remove. Please help. Thanks

speedball1 · Feb 27, 2010, 10:41 AM

Looks just like speedballs diagram. It would be part 19a in diagram. I am not sure how to remove.

Remove the handle and unscrew the retaining nut. Pull the spout up and you'll see the diverter. Pull it out and clean all the trash out o9f the opening. Turn the water back on to flush out the valve and reassemble. Good luck, n Tom

dianne aust · Jul 4, 2012, 05:22 AM

This is not helpful to me, I have a kohler that is 3 years old, brand new house. Help.
