    Delta Shower Faucet assembly diagrams
    Where can I find the Delta Shower Faucets assembly diagrams online?


    Thanks,
    Brian
    afaroo's Avatar
    afaroo Posts: 4,006, Reputation: 251
    Ultra Member

    #2

    Feb 23, 2010, 10:05 AM

    Open the link below once it is open put the model number in the search box and go from there, good luck.

    John

    Search Results : Delta Faucet
    speedball1's Avatar
    speedball1 Posts: 29,301, Reputation: 1939
    Eternal Plumber

    #3

    Feb 23, 2010, 10:42 AM

    What model are you seeking? Tom
    chanbr's Avatar
    chanbr Posts: 11, Reputation: 1
    New Member

    #4

    Feb 23, 2010, 08:08 PM
    I don't know the model. I bought this shower faucet a few years back. But I do know this: behind the stem assembly, there is a small hole where the rubber and spring go.

    Thanks,
    Brian
    speedball1's Avatar
    speedball1 Posts: 29,301, Reputation: 1939
    Eternal Plumber

    #5

    Feb 24, 2010, 07:44 AM

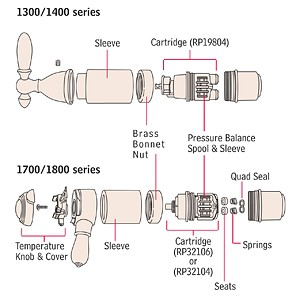

    Does this ring a bell? (see image).
    Attached Images

    chanbr's Avatar
    chanbr Posts: 11, Reputation: 1
    New Member

    #6

    Feb 24, 2010, 08:10 AM
    The stem assembly does not look like what I have. I like to attach my stem assembly image here, but I don't know how to do that. I am new to this group. How do I attach an image to my response?


    My stem assembly looks like this:
    speedball1's Avatar
    speedball1 Posts: 29,301, Reputation: 1939
    Eternal Plumber

    #7

    Feb 24, 2010, 10:38 AM

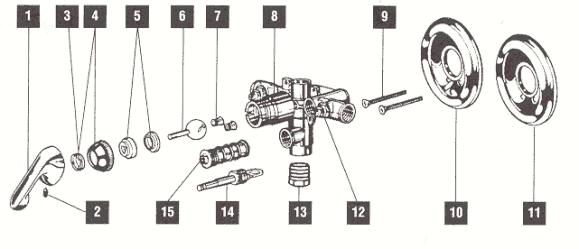

    How's this grab you?
    Attached Images

    royals91's Avatar
    royals91 Posts: 17, Reputation: 2
    New Member

    #8

    Feb 24, 2010, 12:12 PM

    Yes you are correct the seat and spring goes behind the cartridge. Does your shower have a knob for temp. and for on/off or just a lever for on and you adjust the temp based on the angle of the handle? You can also send me a picture we are the delta rep for Indiana.
    chanbr's Avatar
    chanbr Posts: 11, Reputation: 1
    New Member

    #9

    Feb 24, 2010, 02:44 PM

    Thanks Speedball1. The 1300/1400 series looks like my thing. I just went to the Delta web site and typed in 1300 as the model number. It could not find anything. What is the model number for the 1300/1400 series?

    Royals91:

    I have two knobs, one for hot water and the other for cold water. I adjust the water temp by turning the knobs either clockwise or counterclockwise.
    afaroo's Avatar
    afaroo Posts: 4,006, Reputation: 251
    Ultra Member

    #10

    Feb 24, 2010, 03:58 PM

    Your Cartridge (stem) is not 1300/1400 it is Delta RP1740 stem and there is no technical documents available on the web site open the links below and you will see, the second link will show the 2/3 handle faucet and the stem, Thanks.

    John

    Product Documentation : Customer Support : Delta Faucet

    http://www.plumbingpartsdepot.com/dela23handtub.pdf
    chanbr's Avatar
    chanbr Posts: 11, Reputation: 1
    New Member

    #11

    Feb 24, 2010, 05:39 PM

    Thanks John. Mine looks exactly like the one in the PDF file. The extenders (RP28611), where do I find this part? Does Home Depot carry it.
    chanbr's Avatar
    chanbr Posts: 11, Reputation: 1
    New Member

    #12

    Feb 24, 2010, 06:17 PM
    The handle is attached to this extender (RP28611) by a small screw on the side of the handle. The handle often falls off because the small screw cannot hold on to the handle after a long period. My question is: Is there something I can replace this extender with, so I don't have to worry about the handle falling off and hitting the bathtub all the time? Thanks in advance.
    afaroo's Avatar
    afaroo Posts: 4,006, Reputation: 251
    Ultra Member

    #13

    Feb 24, 2010, 07:10 PM

    Hello Chanbr,

    I am not sure if you will get it from the home Depot give it a try, but I tell you what did you know that all Delta faucet parts has life time warranty call their customer service at 800-345-3358 explain your problem and give them the part number RP28611, they will send the extender, handle and the screw for free no charge to you just tell them that you are the original owner, good luck.

    John
    royals91's Avatar
    royals91 Posts: 17, Reputation: 2
    New Member

    #14

    Feb 24, 2010, 08:22 PM

    chanbr where are you located?
    afaroo's Avatar
    afaroo Posts: 4,006, Reputation: 251
    Ultra Member

    #15

    Feb 24, 2010, 08:24 PM

    I am in California, Thanks.

    John


    Why did you ask?

    But now I am in NC on company business, Thanks.

    John

    But now I am in Greensboro NC on company business, Thanks.

    John
    royals91's Avatar
    royals91 Posts: 17, Reputation: 2
    New Member

    #16

    Feb 24, 2010, 08:58 PM

    Hey afaroo I did not ask where you are from. I asked CHANBR where he is from so I can help him not you AFAROO.
    afaroo's Avatar
    afaroo Posts: 4,006, Reputation: 251
    Ultra Member

    #17

    Feb 24, 2010, 09:03 PM

    Hi ROYALS91,

    Welcome to the plumbing web site and thanks for helping.
    chanbr's Avatar
    chanbr Posts: 11, Reputation: 1
    New Member

    #18

    Feb 24, 2010, 10:02 PM

    I live in the Pasadena, California area.
    royals91's Avatar
    royals91 Posts: 17, Reputation: 2
    New Member

    #19

    Feb 24, 2010, 10:09 PM

    OK, well please take a picture and send it to me and I will give you the parts you need and who to contact.
    afaroo's Avatar
    afaroo Posts: 4,006, Reputation: 251
    Ultra Member

    #20

    Feb 24, 2010, 10:09 PM

    All right as I said if you need the parts feel free to call Delta they are very helpful and will send you the parts, if you have any question please come back and one of us will help you, Thanks.

    John
