Ok, here's the skinny, I tried to save $$ by hiring a handyman plumber, but things just don't look right. In the basement the install would be wetbar, shower, toilet, and lavatory in that order. I'm attaching a picture of what has been done so far, I will accept all complaints because I need to get this done. I've done some reading and that's how I've come to the conclusion that things are not right. I tried to upload the picture but it is to large 388kb is there a way that I can compress it down to 279kb I've tried everything. Well, I will try to explain what I have there is one 2 inch pvc pipe (wetbar sink) that is approximately 26 inches from the exterior wall. It is 12 inches in height. That's picture im00606 first stub is wet bar second stub is shower. The second pis the one i tried to edit. the third picture is showing the toilet and lavatory to the right. The stubs that are shown are drains that are connected under the concrete. I don't see any venting for these pipes. It's been about six months since this work was done. I'm just trying to get this thing done one way or another any input at all would be greatly appreciated.
thanks,
vince

1timer

I sent you that email, because I could not compress the pictures down to the 297kb to upload this site. I hope you received the pictures as well.
vince

speedball1

Where do I start Vince?
With the bar sink raiser that's 26" from a wall when it should have been brought up next to it so it could be hidden by furring out the walls or the stops that are straight stops instead of angle stops and are not even brought out to the correct elevation?
How bout the toilet flange that was glued in a few inches too high or the water supplies for the toilet and lavatory that are positioned wrong.
Unless that 3" vent is carring discharge fromup stairs it's completely unnecessary. About the only thing I can see he did right was to tie the shower drain into the lavatory drain and let the lavatory wet vent the shower. You are aware that you'll have to vent both the lavatory and the bar sink aren't you? My advice? Get a real plumber in to straighten out this abortion before it goes any farther. Ya made a bad boo-boo Vince trying to save a buck and now it's time to "bite the bullet" and make it right. Good luck, Tom

1timer

Well, I asked for it, didn't know it at the time. Thanks for your expert advice. The flange has actually been corrected from your previous help. I thought that the stubs would have to come up the the exterior wall. And yes the lav and wetbar would have to be vented, I was thinking a horizontal vent. I have more time than money, so I will be trying to correct what you have posted. I know that means jack hammering the concrete floor to correct the stubs.

speedball1

Hi Vince,

If you plan on doing the work yourself I can furnish you with rough in measurements, ie; distance from floor to center of stubouts, height of supplies ect. If by horizontal vent you mean reventing one fixture back to the other and running one vent out for both, that works for me.
Regards, Tom

1timer

Any help at all would be greatly appreciated. The rough in measurements and any other info I could use.

speedball1

Just keep me informed as to the area you're working and I'll furnish the rough in dimensions for that fixture. Tom

1timer

I will be working on the two stubs that are extending from the concrete today. The first one is the wet bar area that is 26 inches from the wall. The other stub (lavatory) is 12 inches from the wall. I know I will have to jack up the concrete and move them closer to the wall. I guess once that's done what supplies would I need? The drain pipe underneath is either a 3 or 4 inch pipe that will need to be extended and then reduced to a 2 inch pipe. could you help me from there?
vince

speedball1

Good morning Vince,

Extend the bar sink drain to the wall and turn up with a DWV elbo to 17 1/2" to the center of 2X1 1/2" sanitary tee. A vent will raise out of the tee and revent back into the lavatory vent which will go out through the roof. After you figure how much fur the wall out the supplies stub out at the same elevation on either side of the tee, ( if that's not possible then off to one side will be acceptable), with compression angle stops not the straight stops that are now on there. Do one wall at a time. Your next focus should be on the shower. Let's take this one step at a time. Regards Tom

1timer

thanks, that will get me started.

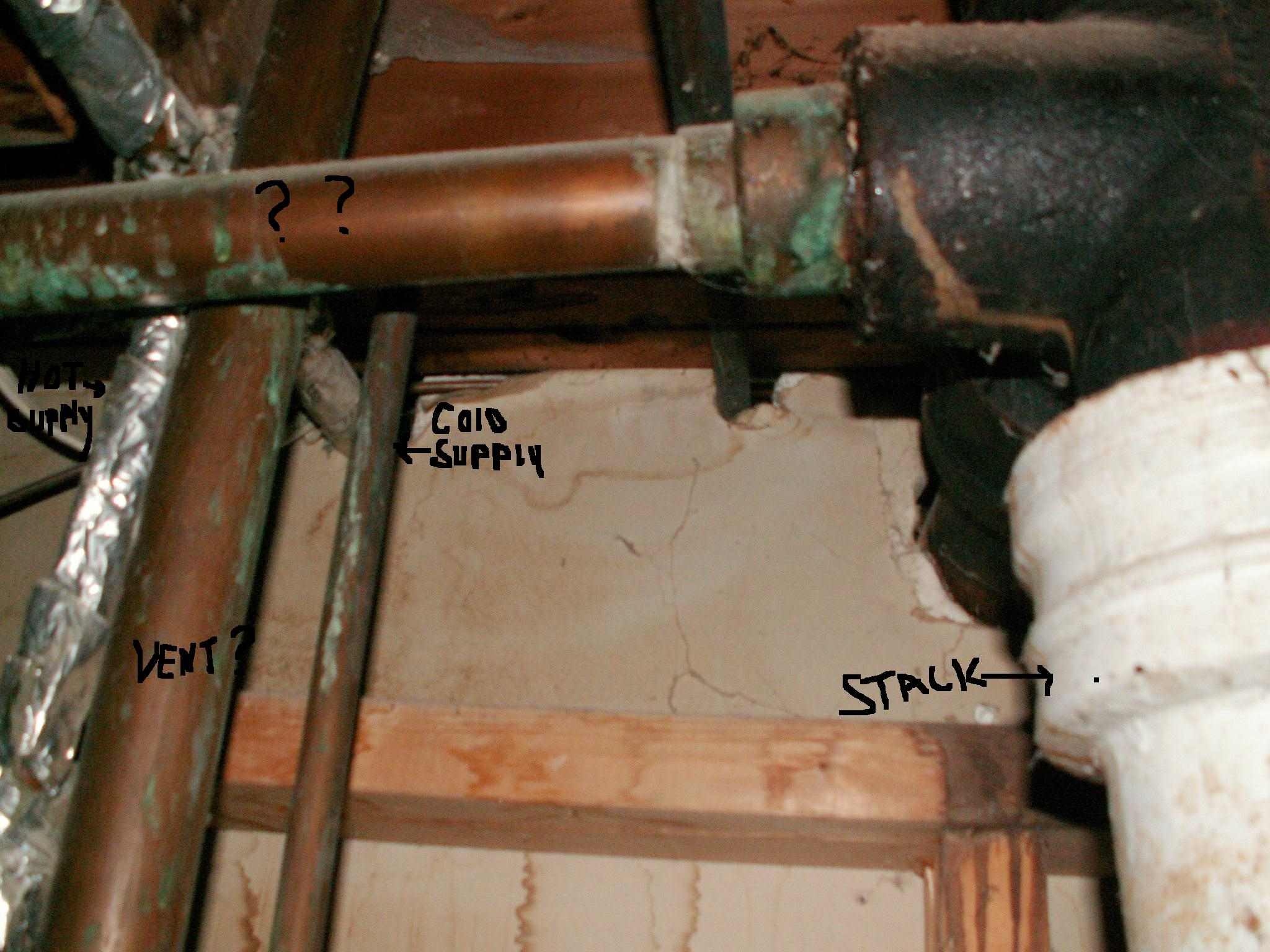

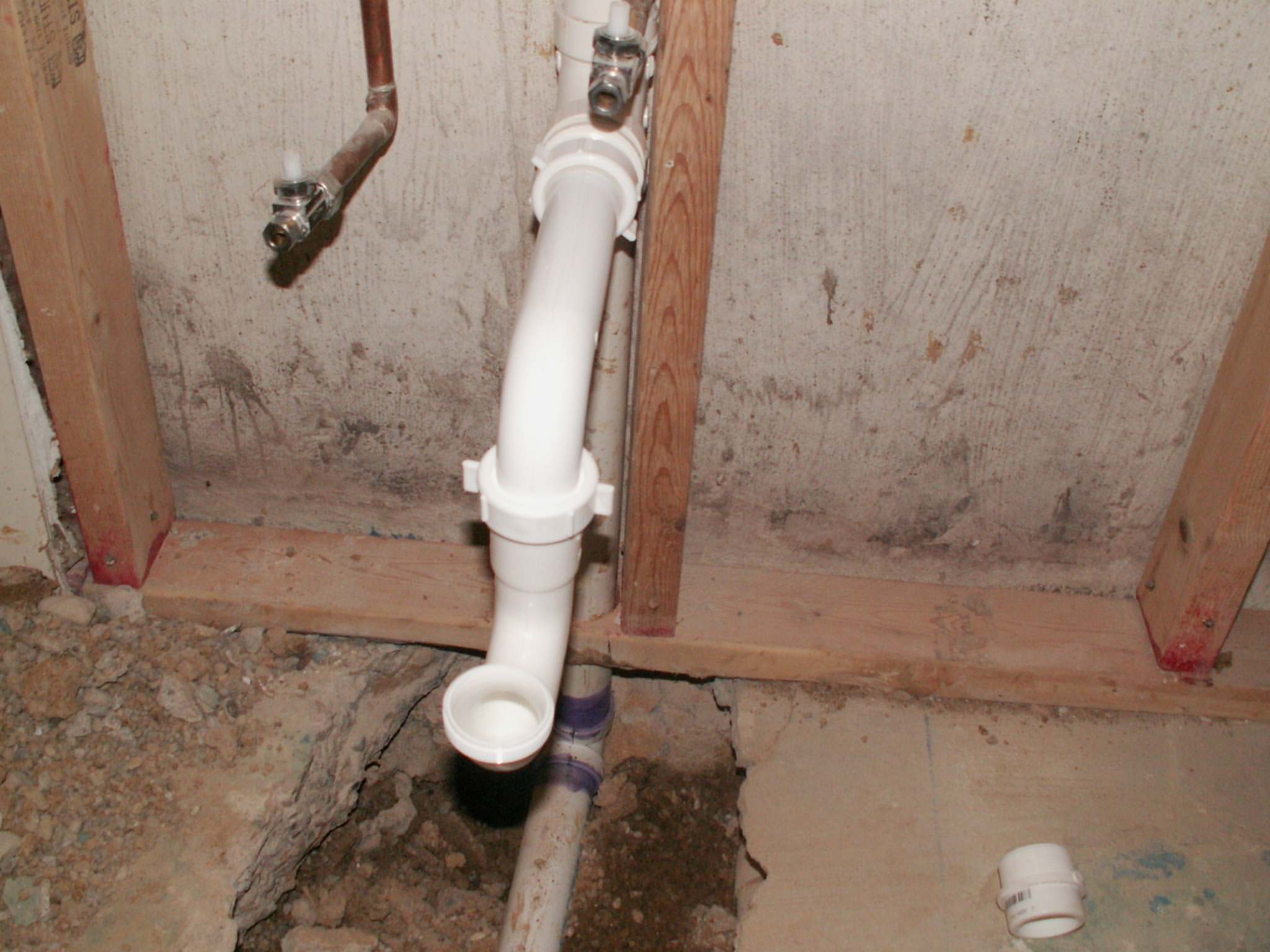

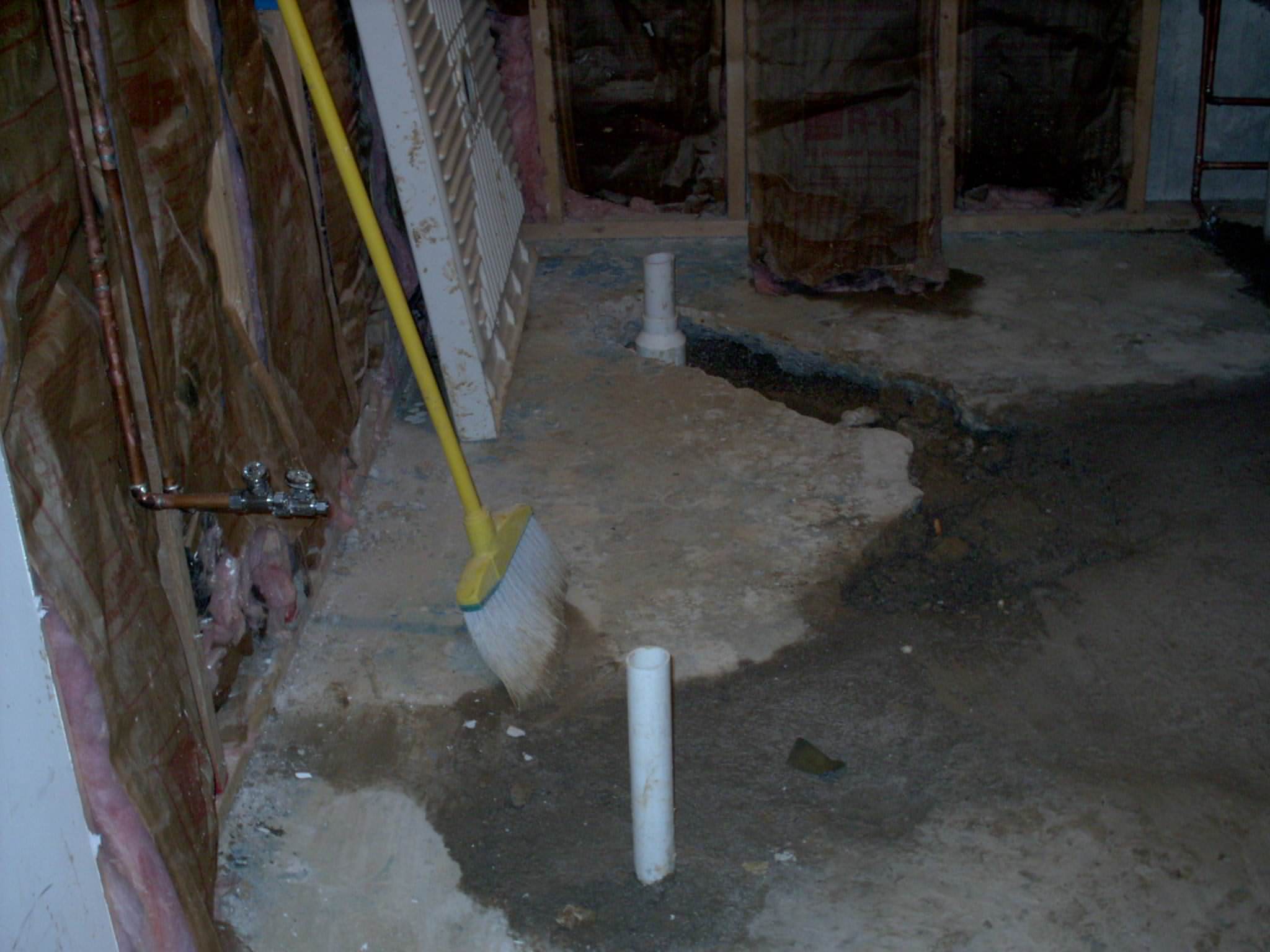

Ok, I think, I finally figured out how to compress the photos. So, here goes with the photos. The first one is the original one I started with. the second one is the completion of the first one. If, anyone has any input I would appreciate it. I also understand that, I need to move the copper pipes over from the pvc pipe.

Attached Images

	wetbar pipe.jpg (187.4 KB, 144 views)
