    Basement Layout
    Can you all please look this over. We are just about ready to go with this project. I have just cut all of the concrete. Dug the hole for the sewage basin and I am now just wanting a review on this before I begin. This has been one long day of digging and cutting.

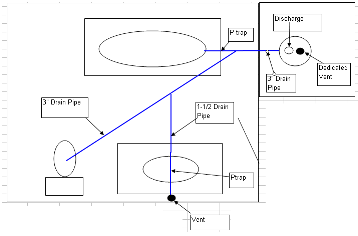

    Attached Images

    speedball1's Avatar
    speedball1 Posts: 29,301, Reputation: 1939
    Eternal Plumber

    #2

    Jan 7, 2007, 07:52 AM
    You are discharging a major fixture,(your toilet) past a unvented minor one,(your tub) and you can not do this. You'll suck the trap seal out of the tub trap every time you flush. You have two options, (1) Run a separate vent on the tub and revent back to the lavatory vent**or**(2) Connect the tub drain into the lavatory drain where it will be wet vented by it. Good luck, Tom
    wesryan's Avatar
    wesryan Posts: 12, Reputation: 1
    New Member

    #3

    Jan 8, 2007, 06:12 AM
    LASt question and thanks for the quick response. Does the Sewage Basin need to be flush with the concrete or can it be up three to four inches. I am very sore!!
    speedball1's Avatar
    speedball1 Posts: 29,301, Reputation: 1939
    Eternal Plumber

    #4

    Jan 8, 2007, 09:04 AM
    Quote Originally Posted by wesryan
    LASt quesion and thanks for the quick response. Does the Sewage Basin need to be flush with the concrete or can it be up three to four inches. I am very sore!!!
    The ejector tank can set at any elevation as long as the inlet pipe has slope back to the fixtures. I hope you're not "sore" at me LOL. Tom
