changing wires in telephone jack for dsl

romeo1969 · #1 Sep 17, 2009, 08:57 PM

Trying to find out how to wire my telephone jack in my house for dsl or internet.

KeepItSimpleStupid · Sep 17, 2009, 09:25 PM

Since I don't quite understand the question, I'll reply with:

DSL can be wired in one of two ways:
Filters
One is used on every location BUT the DSL modem. You cannot have more than 5.

Splitter
Only one is used. It is typically installed at the NID outside. Us experts usually like using the highest pair for the DSL modem.
That pair is wired to one location where the DSL modem goes. The blue/wht, wht/blu pair is still line 1.

ITstudent2006 · Sep 17, 2009, 09:33 PM

You dont have to "re-wire" anything. what you will get is a DSL modem. This modem looks similiar to a router.

It will have a jack for an RJ-11 (standard house-phone wire) and then an RJ-45 jack (which is your ethernet [internet] wire)

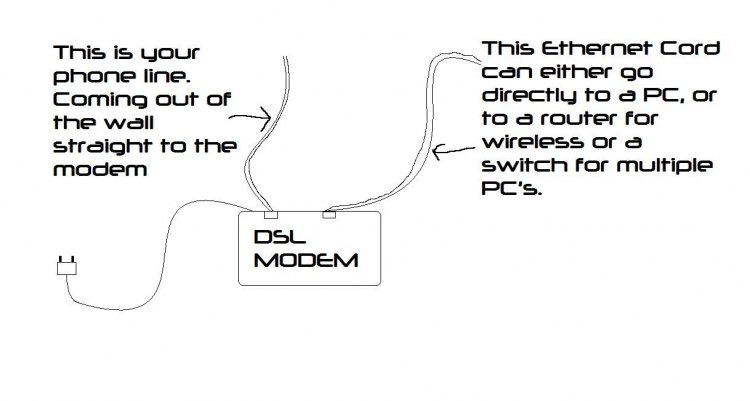

Look at the attachment and I drew a quick sketch to kinda help you understnad.

Rick

KingsX · Sep 19, 2009, 06:00 PM

But other phone lines will need the dsl filters.
