Angle of elevation

Asked May 29, 2008, 10:31 PM — 5 Answers
If I know the angle of elevation of an object is 58 degrees at 50 feet from the object, is there any simple way of calculating what the angle of elevation would be 11 feet below the observation point at the same distance (50 feet) from the object ?

Any help would be appreciated.
Flashman2

Search this Thread
Share |
5 Answers
galactus's Avatar
galactus Posts: 2,272, Reputation: 1436
Ultra Member

#2

May 30, 2008, 05:42 AM

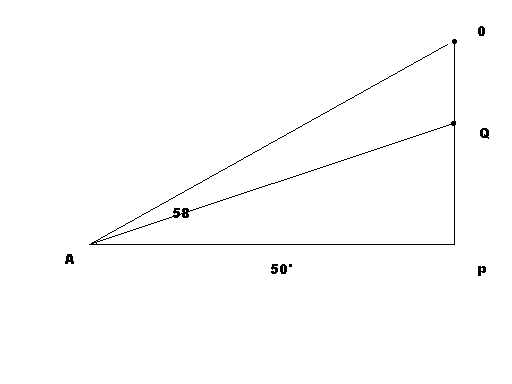

Yes, there is. You can use the law of tangents to find the height OP, then subtract 11.

OP=50tan(58)=80.02.

Now, you have PQ=80.02-11=69.02.

Now, you can use the law of tangents to find the angle you need.
Attached Images

Helpful
Flashman2's Avatar
Flashman2 Posts: 54, Reputation: 1
Junior Member

#3

May 30, 2008, 09:19 PM
Thanks galactus, I'm not sure I asked the question properly. What I'm looking for is what the elevation would be 11 feet BELOW the observation point "A" in your drawing.
Helpful
Unknown008's Avatar
Unknown008 Posts: 8,147, Reputation: 3745
Uber Member

#4

May 31, 2008, 02:22 AM
Then it would be an angle of depression, right. But the same procedure and reasoning is used. Then however it's simpler as you already know the distance P to the 'new' Q in the above sketch, which is 11 feet and only have to use the law of tangents to find the angle of depression.
Helpful
Flashman2's Avatar
Flashman2 Posts: 54, Reputation: 1
Junior Member

#5

Jun 2, 2008, 05:53 PM
Thanks Galactus and Unknown 008. I have finally figured it out with your help. If I knew how to attach a drawing to my question ,like galactus did, it would have been a easier for me to show what I wanted. But I don't know as yet and would like help in this regard.
Thanks again.
Helpful
galactus's Avatar
galactus Posts: 2,272, Reputation: 1436
Ultra Member

#6

Jun 2, 2008, 06:42 PM
I make mine in Paint. Click on Manage Attachments, Browse, locate your file then Upload. That's all there is to it.
Helpful
