    Adding Stair Tread Support

    Asked Feb 18, 2010, 07:19 AM 5 Answers
    Hey guys, I have a 50 year old house. The stairs leading from my first floor to the second floor need some help. Some of the treads are starting to split where they were glued years ago. When I put weight on the tread, some spots sink a little.

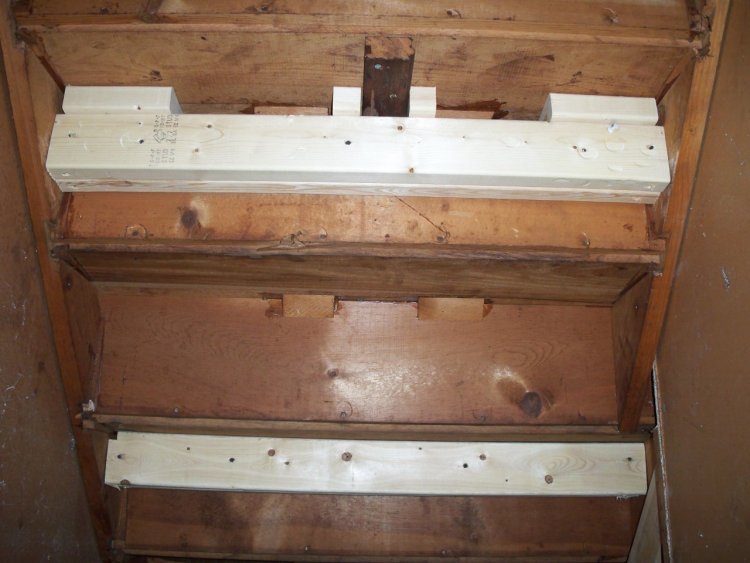

    Last year I tried the fix shown in the pic below, but it only worked so, so. Does anyone have a better way for me to support the treads from below in a way that will still allow me to sheetrock over the supports later on?

    Attached Images Attached Images
    Search this Thread
    Share |
    5 Answers
    hkstroud's Avatar
    hkstroud Posts: 10,078, Reputation: 746
    Home Improvement & Construction Expert

    #2

    Feb 18, 2010, 07:40 AM



    Install a couple of angle brackets as shown tying treads to risers.
    Attached Images

    Helpful
    logan176's Avatar
    logan176 Posts: 325, Reputation: 6
    Full Member

    #3

    Feb 18, 2010, 08:19 AM

    Are these brackets designed to reach all the way under the tread or just tie the tread into the riser? I'm not having problems with the riser connection. The separation is happening right in the middle of the tread.
    Attached Images

    Helpful
    hkstroud's Avatar
    hkstroud Posts: 10,078, Reputation: 746
    Home Improvement & Construction Expert

    #4

    Feb 18, 2010, 11:46 PM



    Sorry, misunderstood the problem.

    I think I would attach a strip of 1/2" plywood about 4" wide to the underside of the tread, straddling the joint using glue and screws. You will have to drill pilot holes in the oak tread for the screws, being careful not to penetrate the top side of the tread.
    Helpful
    logan176's Avatar
    logan176 Posts: 325, Reputation: 6
    Full Member

    #5

    Mar 31, 2010, 02:12 PM

    This idea worked great. Instead of using 4" strips I used plywood strips that were 7"x24". Then I glued and screwed. Using the plywood was faster and added so much more support than my original fix. Thanks again.
    Helpful
    andyandjudi's Avatar
    andyandjudi Posts: 3, Reputation: 1
    New Member

    #6

    Apr 22, 2012, 05:32 AM
    Cut a third stringer in
    Helpful
