    Trane 80XL "Common" connection
    Hey Folks...

    I have a special thermostat in which I need to connect the common line, "C" in order to power this thing.

    Where can I get a connection to "Common" in this older furnace?

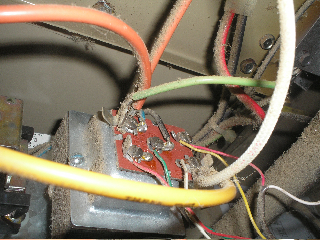

    See attached

    Many many thanks!
    Brian
    Attached Images

    NorthernHeat's Avatar
    NorthernHeat Posts: 1,455, Reputation: 132
    Ultra Member

    #2

    Jan 30, 2008, 04:48 PM
    The terminal marke "C" there is also "G", "W", "R" and "Y" correct? The next problem is if you only have 4 wires to stat and you need 5. Maybe you need another thermostat that is either power robbing or battery powered.
    ecoheat's Avatar
    ecoheat Posts: 4, Reputation: 1
    New Member

    #3

    Jan 30, 2008, 05:17 PM
    Thanks! But, I don't see one labeled "C"... did I just miss it? Is it the terminal with the two large orange wires, blue wire, and green wire all connected at the same point?

    No worries, we've done quite a few installs before, but we have not yet installed one on such an older furnace. There's an unconnected blue or black wire we can use going to the stat.

    Thanks again.
    hvac1000's Avatar
    hvac1000 Posts: 14,540, Reputation: 435
    Heating & Air Conditioning Expert

    #4

    Jan 30, 2008, 05:54 PM
    Blow the dust off it and you might find the C terminal. LOL
