    Programmable Thermostat
    I wanted to install a progammable thermostat to my oil fired furnace with air and was told that I would have to insall a relay on my furnace. Where do I install the relay and how?

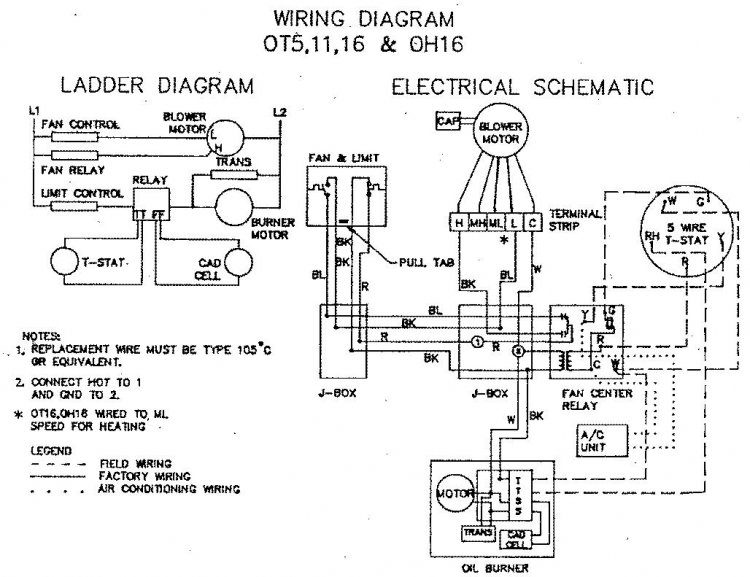

    Name: furnace.jpg Views: 30815 Size: 91.3 KB wireing diagram for a Thermo Pride furnace. The thermostat I was going to install is a Hunter but missplaced it for nowl
    KISS's Avatar
    KISS Posts: 12,510, Reputation: 839
    Uber Member

    #2

    Aug 12, 2009, 08:06 AM

    Somebody' pulling your leg. You need a conventional fuel (oil/gas) thermostat, preferably non-Hunter. "C" may be required for a non-battery powered stat.

    G is used for fan control and for Air Conditioning
    Y is used for air conditioning
    hvac1000's Avatar
    hvac1000 Posts: 14,540, Reputation: 435
    Heating & Air Conditioning Expert

    #3

    Aug 12, 2009, 08:08 AM
    It is already in the diagram. The item that activates the fan is called the Fan Center Relay. The G terminal/Green wire on the thermostat activates the Fan Center in the cooling mode to activate the blower motor. Looks like you are all set to go to work.
    hvac1000's Avatar
    hvac1000 Posts: 14,540, Reputation: 435
    Heating & Air Conditioning Expert

    #4

    Aug 12, 2009, 08:10 AM
    Keepitsimple here is his original post

    https://www.askmehelpdesk.com/heatin...ay-385738.html
