How to Clean Drain in a York Diamond 80

hvac1000 · Aug 4, 2012, 11:54 AM

DO NOT cut any copper lines!!!!! You want to cut the 3/4 inch white plastic drain line and add a Y style fitting or a TEE fitting if a Y is not available. Then you can blow the line out with compressed air or what have you that will get the job done. (I use a small tank of Nitrogen but that is not always available to home owners)

After you clear the line you can install a small piece of pipe and place a cap on top so your future cleanings will be easier. This should have all been done during the install.

thermalmedics · Aug 4, 2012, 11:59 AM

you can also find the drain outside and hook up your shop vac there and prime it to a good suction if you want. that will work in a pinch but hvac1000 is right there should be a nice p trap and somewhere to access but the shop vac will get you done in a pinch.

MDV34 · Aug 4, 2012, 12:07 PM

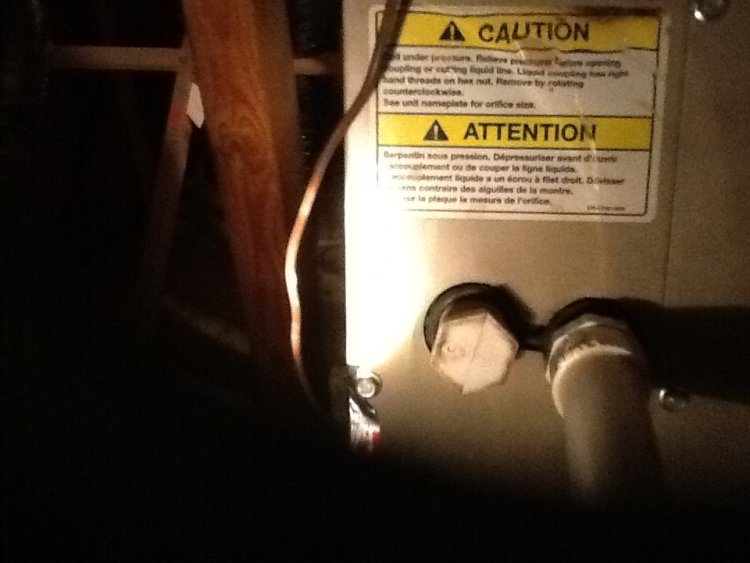

Thanks for your help! I agree the builder cut a lot of corners. I assume its not that hard to cut a pipe and install a Tee or Y style fitting (I'll check the internet). I assume this should be done away from the unit. When I cut the pipe I assume there will be a large flow of water from the unit which I should be ready for....the unit is in the attic. Also, before I cut the pipe I will open the valve per the caution sign. I assume it will re-pressurize after I close everything back up.

Mike

Mike

MDV34 · Aug 4, 2012, 12:14 PM

Quote:

Originally Posted by thermalmedics

you can also find the drain outside and hook up your shop vac there and prime it to a good suction if you want. that will work in a pinch but hvac1000 is right there should be a nice p trap and somewhere to access but the shop vac will get you done in a pinch.

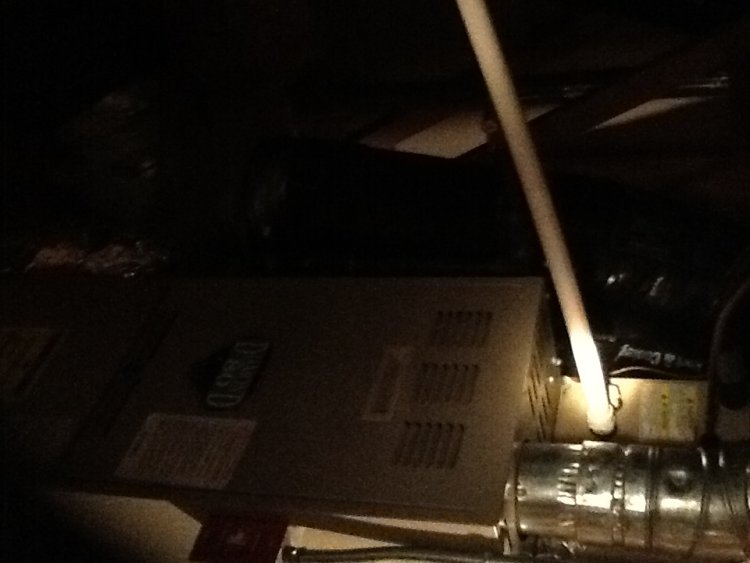

Thanks. Unfortunately, I cannot locate the drain outside of the townhome. The pipe goes from the unit into the floor of the attic and then disappears. As you can imagine, a townhome is not huge and I searched every inch of the outside and there was no pipe to be found. I am at a loss as to where the pipe goes.

Mike

thermalmedics · Aug 4, 2012, 12:51 PM

then in a pinch just cut the pvc a ways away from the air handler and get a 3/4 coupling and some glue ready. vac it out to remove the obstruction and re attach with the coupler
