    Furnace Limit Switch
    I have Bryant upright furnace (Model 394GAW048100). Furnce runs fine for the first 4 or minutes in a cycle and then gas is cut automatically while the pilot is still on. After a few seconds, the gas again comes on and Furnace works fine for about 30 seconds, again gas is cut and so on. I changed the Furnace Limit Switch. Once I changed it, the furnace worked fine without cutting gas for the first about 12 minutes but then started cutting gas for about 30 seconds. A minute on and so on.

    Is it normal for a furnce to cut gas. Or do you know if this is an issue. If issue, what should I check.

    Thanks
    John
    hixton's Avatar
    hixton Posts: 146, Reputation: 5
    Junior Member

    #2

    Nov 26, 2008, 08:46 PM

    John it could be your firing valve the pick and hold might not be working right give that a try
    MarkwithaK's Avatar
    MarkwithaK Posts: 955, Reputation: 107
    Senior Member

    #3

    Nov 27, 2008, 06:58 AM

    Ok I'm a little confused here. What is a firing valve? A pick and hold? Never heard these terms.
    hixton's Avatar
    hixton Posts: 146, Reputation: 5
    Junior Member

    #4

    Nov 27, 2008, 10:16 AM

    The firing valve is the main control that allows gas into the furnace the pick and hold is the way the valve on a bryant furnace works it the way they design it . Troubleshooting should be left to a qualified tech.Firing valves are not cheap.
    MarkwithaK's Avatar
    MarkwithaK Posts: 955, Reputation: 107
    Senior Member

    #5

    Nov 27, 2008, 11:26 AM

    Odd. In all my years in this industry I have yet to hear that terminology and I'm a Carrier dealer.
    hvac1000's Avatar
    hvac1000 Posts: 14,540, Reputation: 435
    Heating & Air Conditioning Expert

    #6

    Nov 27, 2008, 01:25 PM
    Quote Originally Posted by MarkwithaK View Post
    Odd. In all my years in this industry I have yet to hear that terminology and I'm a Carrier dealer.

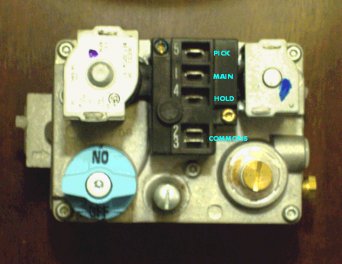

    Example from my class. Used with 3 wire pilot
    Attached Images

    hvac1000's Avatar
    hvac1000 Posts: 14,540, Reputation: 435
    Heating & Air Conditioning Expert

    #7

    Nov 27, 2008, 01:28 PM
    Quote Originally Posted by hvac1000 View Post

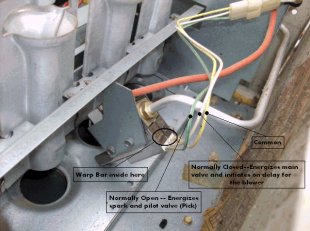

    Example from my class. Used with 3 wire pilot

    Pilot
    Attached Images
