Digital, programmable Thermostat to replace mercury on Rheem RPLA-025JAZ

Asked Dec 1, 2011, 04:10 PM — 4 Answers
I felt quite confident after doing this myself until I just realized that the heat pump never comes on (fan never turns in outside unit). I'm getting great heat but my first month's bill was very high. Am I totally running on auxillary heat? How do I rewire the White-Rogers thermostat to correct this?

Search this Thread
Share |
4 Answers
wmproop's Avatar
wmproop Posts: 3,732, Reputation: 554
Ultra Member

#2

Dec 1, 2011, 07:48 PM
the model number of new stat. is needed,,also tell us how you wired the tstat wires.
hold on to your install instructions and instructions as to how to program the tstat

get back to us with more info
Helpful
Meena54's Avatar
Meena54 Posts: 5, Reputation: 10
Junior Member

#3

Dec 2, 2011, 01:58 AM
White-Rodgers 1F78 5/2 Day Programmable Thermostat

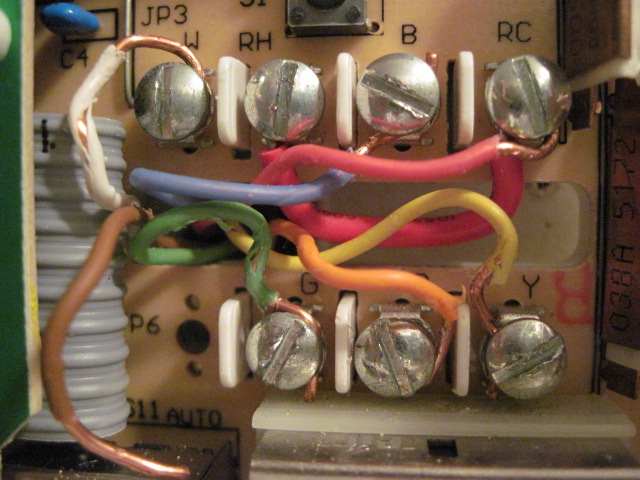

Wiring photo attached.
Attached Images

Helpful
Meena54's Avatar
Meena54 Posts: 5, Reputation: 10
Junior Member

#4

Dec 2, 2011, 02:48 AM
I think I figured it out. I have a thermostat that only works with one stage heating and my heat pump is two stage.
Helpful
wmproop's Avatar
wmproop Posts: 3,732, Reputation: 554
Ultra Member

#5

Dec 2, 2011, 05:14 AM
good deal,,,Yes you need a tstat with 2 stage heat and 1 cool
on the 2 stage,,one is for heatpump the other is for aux. furnace
Helpful  (1)
