Automatic pilot does not light

Asked Jan 11, 2010, 10:56 PM — 1 Answer
I have a carrier furnace (model 394G048125) with automatic pilot. The thermostat requests heat, the blower turns on, and that's it. It appears gas is going to the pilot light but not igniting. The blower then blows the unburnt pilot gas throughout the house as the blower stays on. I measured 24 vac going to the ignitor module. Hopefully someone out there can shed some light on my furnace problem. Thanks.

Search this Thread
Share |
1 Answer
hvac1000's Avatar
hvac1000 Posts: 14,539, Reputation: 2381
Heating & Air Conditioning Expert

#2

Jan 12, 2010, 11:27 AM

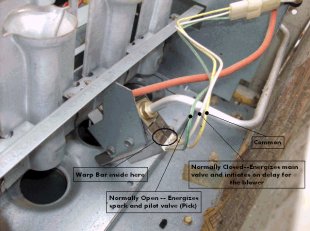

Is your pilot a 3 wire pilot.
Attached Images
