    need wiring diagram
    does anyone have a wiring diagram for a 12.5 hp murray riding mower 40. Inch cut.5 speed mod no.405011x92a mfg.date 3/18/2005 serial no. 753417751128657 I am 70 yrs old and need this badly can't afford a book thanks.
    sherroa's Avatar
    sherroa Posts: 1, Reputation: 1
    New Member

    #2

    Jul 10, 2009, 10:18 AM

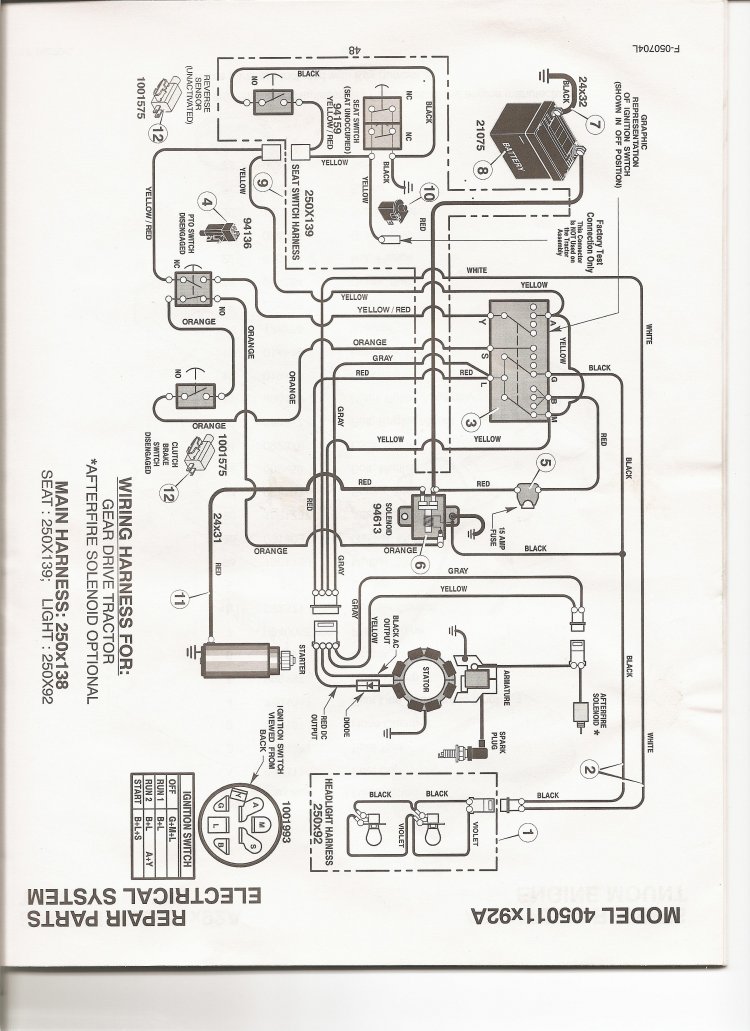

    Name: 405011x92A.jpg Views: 69929 Size: 139.7 KB
    Quote Originally Posted by lklingjr View Post
    does anyone have a wiring diagram for a 12.5 hp murray riding mower 40. inch cut.5 speed mod no.405011x92a mfg.date 3/18/2005 serial no. 753417751128657 i am 70 yrs old and need this badly can't afford a book thanks.
    I have scanned that diagram and attempted to attach a copy to my response. Let me know if you can't open it and I will try again. Al
    lklingjr's Avatar
    lklingjr Posts: 3, Reputation: 1
    New Member

    #3

    Jul 11, 2009, 05:12 PM
    Quote Originally Posted by sherroa View Post
    Name: 405011x92A.jpg Views: 69929 Size: 139.7 KB

    I have scanned that diagram and attempted to attach a copy to my response. Let me know if you can't open it and I will try again. Al
    Thanks very much it just what I needed.have a nice day,leo kling jr
