pump wiring 1/2HP 120volts northern tool

Oneill474 · #1 Sep 20, 2009, 11:48 AM

instructions state prepare a three core electrical set with plug. okay
loosen the two copper screws marked with "V1 W1 & U1 and fasten the electric
power leads to them.

But which one is hot(Black) and which one is Neutral(white) or does it matter.
I know where the terminal for the green ground wire goes. 110 volt motor.

There is another terminal they do not mention it the instructions v2-U2
sit away from the rest? must be for something else?

Missouri Bound · Sep 20, 2009, 12:24 PM

Sounds like it's a 220 volt motor. Which motor is it?

hkstroud · Sep 20, 2009, 12:42 PM

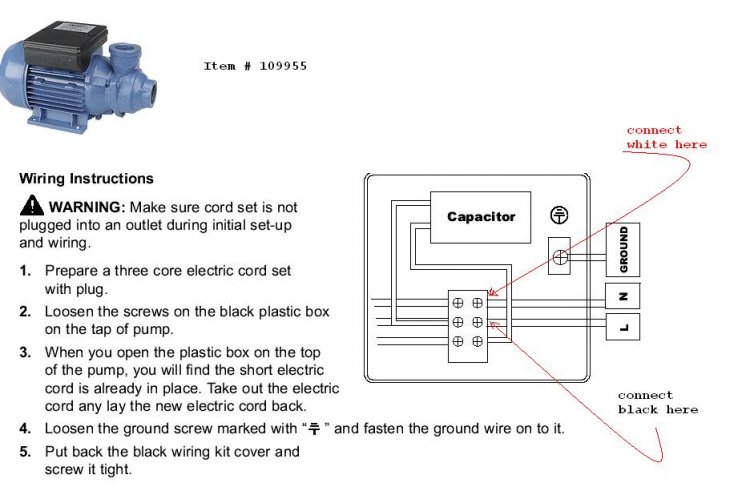

Is this the pump you have?

Instructions apparently written in another language and translated to English.
