    Minimum Circuit Amps for 2 ton air handler with 5kw heat strip

    Asked Oct 6, 2009, 08:32 AM 2 Answers

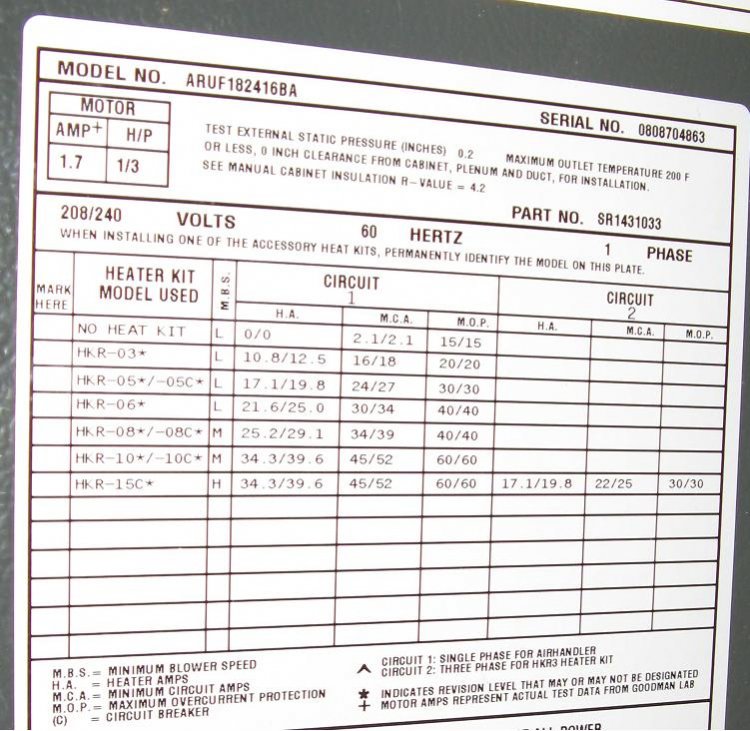

    Hi all. I currently have a 30Amp breaker on 10 gauge wire for the air handler and heat strip. This was a new install and the local inspector seems to think that 30amps is not enough. I took a picture of the specs and uploaded below. What breaker/wire is needed to be in compliance? Any help is greatly appreciated.

    Note: Heater Kit is HKR-05

    Attached Images Attached Images
    Search this Thread
    Share |
    2 Answers
    stanfortyman's Avatar
    stanfortyman Posts: 5,300, Reputation: 264
    Electrical & Lighting Expert

    #2

    Oct 6, 2009, 12:38 PM


    Your local inspector is wrong. If he cannot tell that it very clearly states 30A circuit is appropriate then he needs to go back to inspector school.

    M.C.A. is minimum circuit ampacity. The minimum size the circuit can be.
    M.O.P. is maximum overcurrent protection. The maximum overcurrent (breaker or fuse) that can be placed on the circuit.
    Helpful
    jcp6649's Avatar
    jcp6649 Posts: 4, Reputation: 1
    New Member

    #3

    Oct 6, 2009, 12:53 PM
    Quote Originally Posted by stanfortyman View Post
    Your local inspector is wrong. If he cannot tell that it very clearly states 30A circuit is appropriate then he needs to go back to inspector school.

    M.C.A. is minimum circuit ampacity. The minimum size the circuit can be.
    M.O.P. is maximum overcurrent protection. The maximum overcurrent (breaker or fuse) that can be placed on the circuit.

    Much Obliged for the quick response!
    Helpful
