Hunter Ceiling Fan/Light w/remote installation

Asked Jan 4, 2008, 01:49 AM — 11 Answers
Hello,

I am have a hunter ceiling fan and I am having trouble installing this correctly. From the ceiling of the wall I have 4 wires (Red/ Black/ White/ and bare Copper). From the fan there is are only 3 (Black/ White / Green). Please assist me with installing this fan. I have tripped the fuse on the circuit breaker 3 times and I am feeling a little beaten by the fan. Thanks for your help in advance.

Search this Thread
Share |
11 Answers
ceilingfanrepair's Avatar
ceilingfanrepair Posts: 5,738, Reputation: 616
Uber Member

#2

Jan 4, 2008, 08:43 AM
Black to black OR red, white to white, green to copper, cap off the unused wire.

Ceiling fan wiring - Ceiling Fans N More
Helpful
2HeadsRBetter's Avatar
2HeadsRBetter Posts: 4, Reputation: 1
New Member

#3

Jan 5, 2008, 11:04 AM

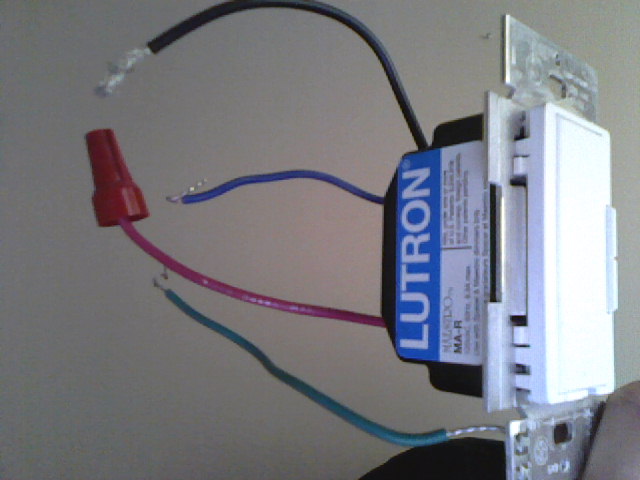

I have the fan connect as you have stated. I capped off the red wire which was not used. I have attached a picture of a wall switch I has also purchased. Can you assit me with instaling this as well? Remember I did not connect the red wire from the ceiling into the fan, but the wall swith has all the wires connected to it. There is a change of the white wire into a black wire into the switch where they just added some wire, but I can clearly see where it is. Thank you For ryou help in advance
Attached Images

Helpful
ceilingfanrepair's Avatar
ceilingfanrepair Posts: 5,738, Reputation: 616
Uber Member

#4

Jan 5, 2008, 11:38 AM
You can't use that wall switch and the remote.
Helpful
2HeadsRBetter's Avatar
2HeadsRBetter Posts: 4, Reputation: 1
New Member

#5

Jan 5, 2008, 11:54 AM
Would this not be compatible with the remote? The reason why I want this type of wall switch is because I do not have any way to control the fan other than from the remote. The current wall switch only turns on the light. So if the remote is ever broken or lost I need another way to control the fan from the switch. What would you suggest? Also the fan does not have any pull cords to operate the light or the fan, everything is from the remote.
Helpful
ceilingfanrepair's Avatar
ceilingfanrepair Posts: 5,738, Reputation: 616
Uber Member

#6

Jan 5, 2008, 11:59 AM
That's the downside of remote fans. Actually, one of the many downsides.

You can buy a Hunter RF wall control and install that, provided the frequency matches the remote.
Helpful
2HeadsRBetter's Avatar
2HeadsRBetter Posts: 4, Reputation: 1
New Member

#7

Jan 5, 2008, 12:21 PM
Thanks for your help. What are some other downside to the remote fans, you made the statement as there are other problems I will run into later?

I am check the home depot website for another remote now. I will also look on the hunter web page as well.
Helpful
ceilingfanrepair's Avatar
ceilingfanrepair Posts: 5,738, Reputation: 616
Uber Member

#8

Jan 5, 2008, 03:57 PM
They break down. A LOT. Hunters are significantly better than other brands that start with 'H'.

Ceiling Fan Brand & Manufacturer Recommendation - Ceiling Fans N More
Helpful
ceilingfanrepair's Avatar
ceilingfanrepair Posts: 5,738, Reputation: 616
Uber Member

#9

Jan 5, 2008, 03:58 PM
Ok that link has the wrong title, but it's the correct link.
Helpful
nia100's Avatar
nia100 Posts: 1, Reputation: 10
Junior Member

#10

Aug 7, 2010, 01:29 PM
I have a Hunter Universal Fan and Light remote control model 27185. Red wire hooked to the light, black to the fan. Now there is a white wire that connects to the common in ceiling. What is common? And there is a white/neutral and a black/hot to AC Power in. I have in the ceiling a black, red, white and bare. The fan I can hook up but the remote, I'm having the problem with.
Helpful
