    How do I wire a single pole switch from hot plug in the same box?
    I have a double box. In which there is already a wired hot double plug, I would like to add a switch to turn off and on a light. I would like to keep the plug hot all the time. How do I wire the switch?
    hkstroud's Avatar
    hkstroud Posts: 11,929, Reputation: 899
    Home Improvement & Construction Expert

    #2

    Mar 15, 2010, 08:45 PM

    ..

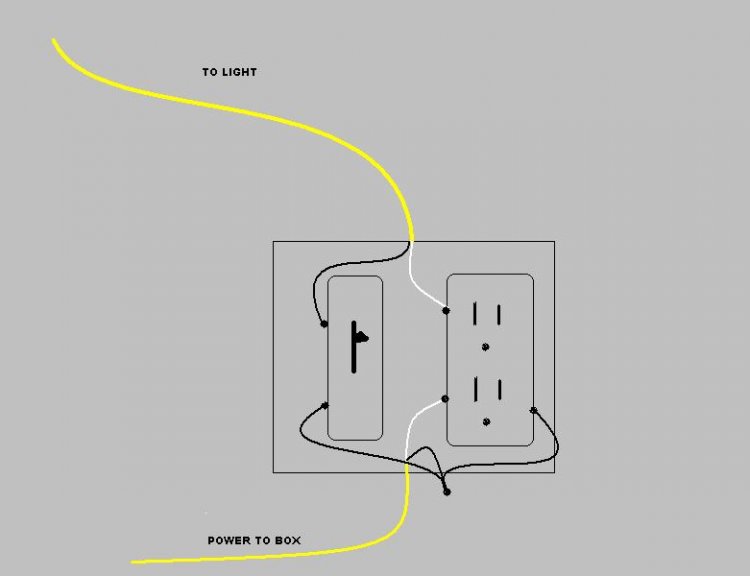

    Attached Images
