Testing mass air flow sensor

Can anyone tell me how to test air mass flow meter ( sensor)?
I have 2003 Toyota corolla ( Altis in Philippine) 1.8G and has been running very well since I bought it new. Two days ago while driving to work, the car suddenly stopped, and will not start again. It had to be toed to Toyota and after two days testing, I was told they need to replace the air mass flow sensor, price around $500 plus $100 for labor. The car seems to be OK for now? I was given the dud sensor, but something tells me i had been taken for a ride? that is why I am requesting to know if it is possible to test the dud sensor using an ammeter or voltmeter.
Any help is greatly appreciated

Reply With Quote



Answers


Old Dec 6, 2007, 07:14 AM   #2
Cars & Trucks Expert
CaptainRich is offline

CaptainRich's Avatar

Reputation: 2,307
Join Date: Apr 2007
Location: Pale Blue Dot
Posts: 5,285
Quote:
Originally Posted by naderme
Can anyone tell me how to test air mass flow meter ( sensor)?
I have 2003 Toyota corolla ( Altis in Philippine) 1.8G and has been running very well since I bought it new. Two days ago while driving to work, the car suddenly stopped, and will not start again. It had to be toed to Toyota and after two days testing, I was told they need to replace the air mass flow sensor, price around $500 plus $100 for labor. The car seems to be OK for now? I was given the dud sensor, but something tells me i had been taken for a ride? that is why I am requesting to know if it is possible to test the dud sensor using an ammeter or voltmeter.
Any help is greatly appreciated
Inspect for dust or contaminants on the sensor: see the picture with the arrow.

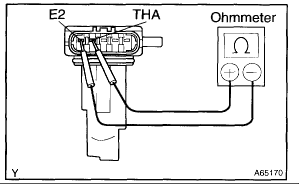

Using an ohmmeter, measure the resistance between terminals THA and E2. Resistance: At -20 °C (-4 °F) 13.6 - 18.4 KOhm At 20 °C (68 °F) 2.21 - 2.69 KOhm At 60 °C (140 °F) 0.49 - 0.67 KOhm

Name:  aa-.gif
Views: 24207
Size:  4.7 KB

2. Inspect the intake air flow meter operation.

1. Connect the intake air flow meter connector.
2. Turn the ignition switch to ON.

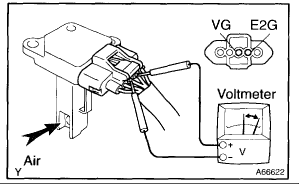

3. Using a voltmeter, connect the positive (+) tester probe to terminal VG, and negative (-) tester probe to terminal E2G.
4. Blow air into the intake air flow meter, and check that the voltage fluctuates.

Name:  aa---.gif
Views: 24646
Size:  5.9 KB
Comments on this post
naderme agrees : Very helpful
  Reply With Quote




Old Dec 6, 2007, 07:40 AM   #3
Senior Cars & Trucks Expert
TxGreaseMonkey is offline

TxGreaseMonkey's Avatar

Reputation: 2,941
Join Date: Jun 2006
Location: Truck Country, Republic of Texas
Posts: 10,646
The MAF Sensor may only have needed to be sprayed with MAF Sensor Cleaner, such as the CRC product below:

CRC Industries Automotive

It's available at WalMart.
Comments on this post
naderme agrees : It is good to keep it in mind
  Reply With Quote




Old Dec 6, 2007, 08:31 PM   #4
New Member
naderme is offline

Reputation: 1
Join Date: Dec 2007
Posts: 3
Hi guys,
I am deeply grateful for you both
CaptainRich,
I have followed your information, and since in Manila (where I am assigned ) the temp. seldom gets below 30 deg C, I plotted the figures you provided to get an approximate value for the Om expected to be @30 deg, which was 2.3kOm. When I carried the test on the sensor as per your instruction, at a scale of x1k the needle swung to zero, and when used x100 scale it registered 10. I guess that shows Toyota people were right after all
Thanks a lot for your help
  Reply With Quote




Old Dec 6, 2007, 11:39 PM   #5
Full Member
Duane in Japan is offline

Reputation: 44
Join Date: Oct 2007
Posts: 282
naderme, I am coming into Manila in a few days (Thur late, 13th) do you know anyone or yourself that would like to make a few bucks driving me to Angeles City / Clark / Fields Ave area?

I would only proof out a bad MAF with an Oscilloscope, because I own one but its a tough call sometimes without watching its pattern on a scope, of course, if its really really bad then the voltmeter will usually work.
  Reply With Quote




Old Dec 7, 2007, 01:13 PM   #6
Ultra Member
kitch428 is offline

kitch428's Avatar

Reputation: 434
Join Date: Nov 2006
Location: NC, y'all
Posts: 1,072
Wow, that's expensive in the Philippines! Good call on getting it fixed, tho.
  Reply With Quote




Old Dec 7, 2007, 07:11 PM   #7
New Member
naderme is offline

Reputation: 1
Join Date: Dec 2007
Posts: 3
Hi Duane,
Thanks for your input. As for your trip to Philippine, unfortunately I can not oblige, cause I will be leaving Philippine for my X-mass vacation, this coming Sunday.

Kitch428,
That is not the only thing expensive in Philippine. Except for rice everything else is !
  Reply With Quote




Old Dec 7, 2007, 10:22 PM   #8
Full Member
Duane in Japan is offline

Reputation: 44
Join Date: Oct 2007
Posts: 282
Thanks for your reply and have a good vacation, I know I am.
  Reply With Quote




Old Oct 22, 2009, 05:38 PM   #9
New Member
viperjet is offline

Reputation: 1
Join Date: Oct 2009
Posts: 4
I need to do a resistance check on my Intake Air Temperature (IAT) sensor on my 2006 Corolla ALTIS. But seem like it the IAT is located in the MAF which consist of a few wires.

http://img42.imageshack.us/img42/5429/22102009305.jpg
http://img132.imageshack.us/img132/4710/22102009307.jpg
http://img94.imageshack.us/img94/5889/22102009309.jpg

Anyone knows which 2 color wires belong to the IAT ?

Please advice. Thanks ..
  Reply With Quote




Old Oct 22, 2009, 06:16 PM   #10
Ultra Member
kitch428 is offline

kitch428's Avatar

Reputation: 434
Join Date: Nov 2006
Location: NC, y'all
Posts: 1,072

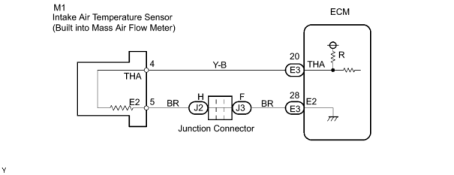

Name:  IAT.bmp
Views: 10325
Size:  233.2 KB
  Reply With Quote
