    2005 toyota camry brake light
    The l/h brake light has no power to the socket. All fuse's are good. Any ideas?
    CaptainRich's Avatar
    CaptainRich Posts: 4,492, Reputation: 537
    Cars & Trucks Expert

    #2

    Sep 3, 2012, 12:54 PM
    When the brake lamp switch is closed (and the other brake lamps are lit), there should be battery voltage on the G-W wire leading to all the brake lamp sockets.
    They all share redundant common ground points in separate locations.

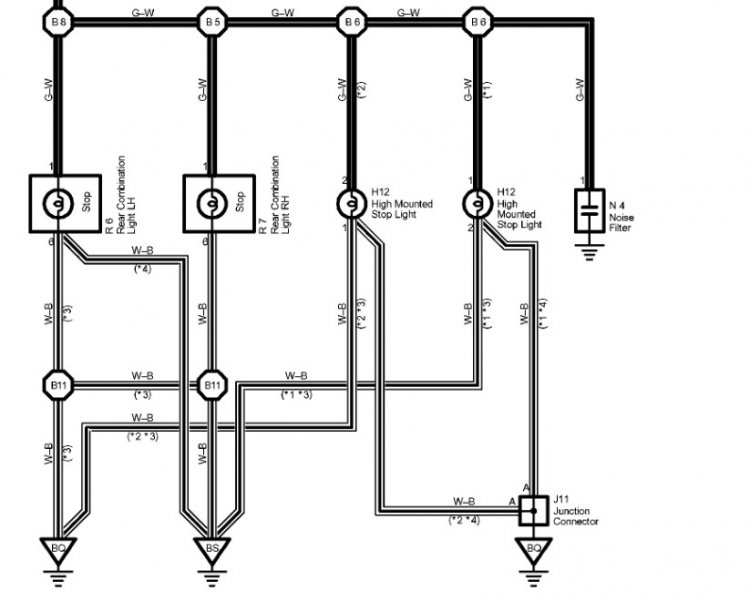

    (see schematics)
    If you're not getting power to only the L/H brake lamp socket, there is an open circuit between the socket and the splice that shares power to all the other lamps on that circuit.

    Name: 1a.jpg Views: 1055 Size: 48.7 KB
