clothes dryer tighten belt tension

gardendance · #1 Jun 5, 2007, 05:03 PM

we've replaced the belt on our GE model DDP1380 SDMAD clothes dryer, but the belt's too loose. It's the same length as the old, broken belt. Is there any way to increase the tension on the idler pulley?

esquire1 · Jun 5, 2007, 05:51 PM

Check and make sure it's routed properly

gardendance · Aug 17, 2007, 08:13 AM

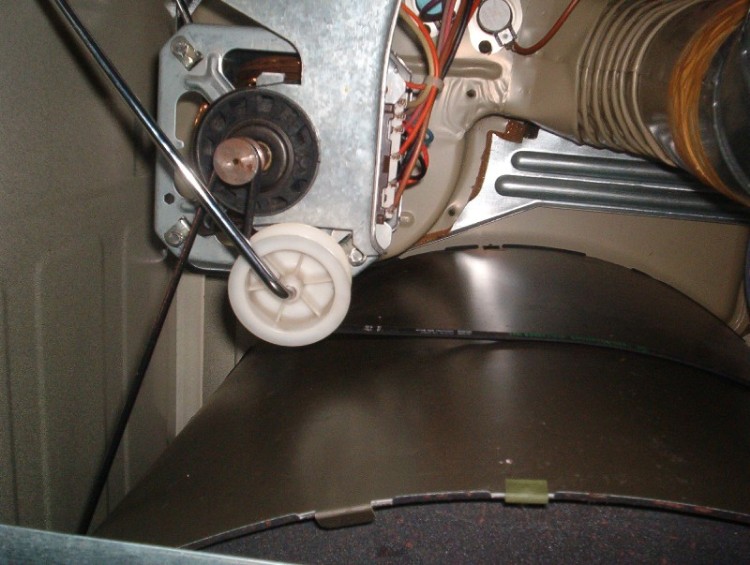

thanks, we had it routed wrong. Coming clockwise from under the dryer we sent the belt around the idler pulley, then around the motor, then back to the drum.

wrong

Name: beltbad.JPG
Views: 402
Size: 90.0 KB

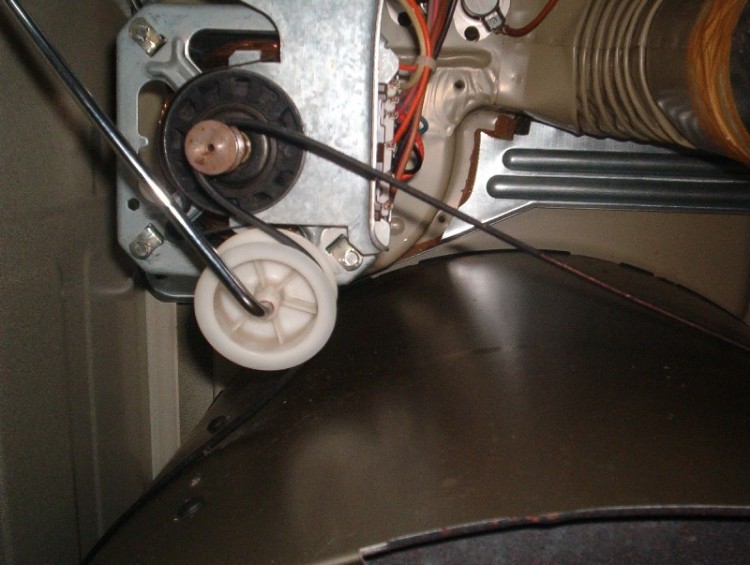

when we sentd the belt around the motor first, then the idler pulley, then back to the drum the belt's tightened correctly

correct
